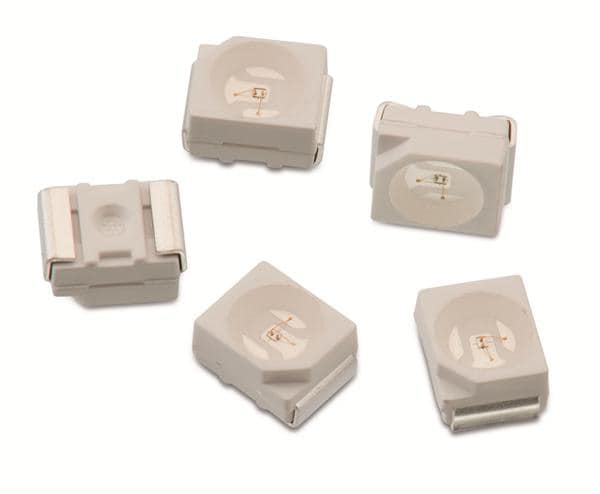

Wurth Elektronik 150141RB73100 Multi-Color LEDs WL-SBTW SMDBiClr Top Watrclr 3528Red&Blue
생산업체: Wurth Elektronik Model: 150141RB73100 - 연락처
Width: 2.8 mm
Height: 1.9 mm
Length: 3.5 mm
Lens Color: Colorless
Lens Shape: Round Flat
Unit Weight: 10 mg
Power Rating: 72 mW, 105 mW
Viewing Angle: 120 deg
Mounting Style: SMD/SMT
Lens Dimensions: 2.4 mm
Lens Transparency: Water Clear
Illumination Color: Red, Blue
Luminous Intensity: 260 mcd, 240 mcd
Moisture Sensitive: Yes
If - Forward Current: 20 mA
Vf - Forward Voltage: 2 V, 3.2 V
Vr - Reverse Voltage: 5 V
Wavelength/Color Temperature: 625 nm, 470 nm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
