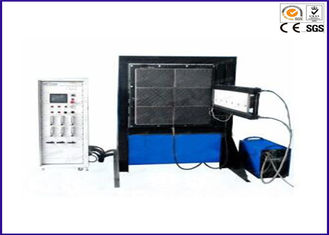

YuYang YY513 BS 476는 7 건축재료 불 검사자 화염 표면 퍼짐 검사자를 분해

1. The area of the radiant panel is 850mm×850mm, strengthen the structural support frame.

2. Sample holder is perpendicular to the radiant panel with standard scale mark, it can according to the distance of the flame propagation to calculate the critical heat flux.

3. Equipped with water cooling circulation system, which can be carried out to the specimen holder, and avoid high temperature cause damage for a long time.

4. Equipped with small flame ignition device, use the electric to ignition.

5. The radiant panel equipped with flame test device, if the radiant panel flame out, it can cut off the gas automatically.

6. Equipped with electric control box, which can adjustable gas and air flow, and show the value of the heat flux.

7. Equipped with water cooling heat flux sensor.

8. PLC+ HIM, can display the information of the test.
