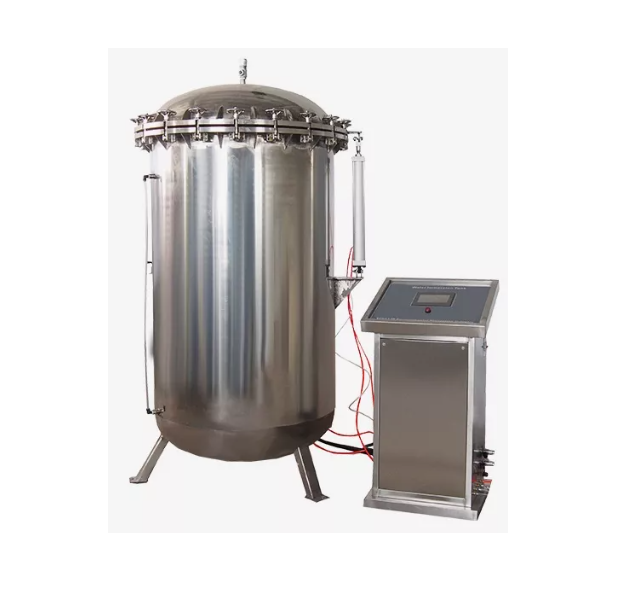

Bể thử ngâm nước IPX7/IPX8 LIB R78-600

Kích thước trong (mm): Đường kính 600 mm × Cao 1500 mm

Kích thước tổng thể (mm): Đường kính 800 mm × Cao 1800 mm

Áp suất: Tương đương áp suất cột nước sâu 50 m

Kiểu mở: Nắp khí nén

Vật liệu: Thép tấm A3, độ dày thành 15 mm

Bộ điều khiển: Màn hình cảm ứng LCD màu lập trình, kết nối Ethernet

Hệ thống cấp nước: Bồn chứa nước, cấp nước tự động

Advantages

1. Dual-Layer Silicone Seal: LIB utilizes a dual-layer silicone sealing system combining soft and hard materials. The soft layer ensures flexible, uniform contact on uneven surfaces, while the hard layer preserves structural stability under high-pressure conditions. This configuration guarantees dependable waterproof performance for both IPX7 (1 m, 30 minutes) and IPX8 (simulated 50 m depth) tests, preventing leaks even after repeated cycles.

2. Reinforced A3 Steel Structure: The chamber walls are made of 15 mm thick A3 steel plates, designed to endure water pressures equivalent to 50 m depth. This sturdy construction resists deformation, extends service life, and ensures operator safety during high-pressure testing. The exterior surface also offers corrosion and impact resistance, maintaining reliable performance in demanding laboratory environments.

3. Adjustable Sample Rack: The internal sample holder supports up to 50 kg and allows both height and rotational adjustments. It accommodates a wide range of components, from small connectors to large actuator modules. Adjustable positioning keeps samples level and fully immersed, ensuring consistent water pressure exposure and accurate, repeatable test results.

4. Comprehensive Safety Measures: Safety is a core feature of LIB chambers. External water-level indicators allow real-time monitoring of immersion, leak detection sensors provide early warnings, and overpressure relief valves prevent excessive pressure from damaging the chamber or specimens. Heavy-duty, floor-mountable feet reduce vibration and tipping risks, while safety interlocks prevent accidental lid opening during testing.

5 . Advanced Control System: The chamber features a programmable color touchscreen and an intelligent PID control system, allowing precise management of pressure, timing, and test sequences. Multiple testing profiles can be saved for repeated use, ensuring consistent results, improved lab efficiency, and compliance with IEC 60529 and ISO 20653 standards.

6. Customizable Test Tanks: The chambers support IPX7 and IPX8 testing requirements. IPX7 tests products under immersion at 1 m depth for 30 minutes, while IPX8 simulates water pressures equivalent to 50 m depth, verifying the highest levels of water ingress protection.
