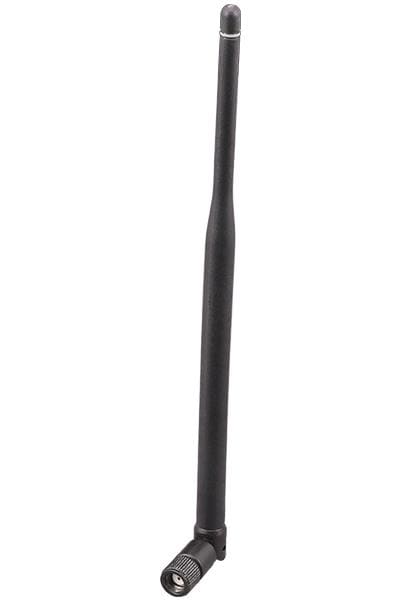

Ăng-ten thụ động ăng-ten cần thẳng 868MHz xoay RPS Linx Technologies - TE Connectivity ANT-868-OC-LG-RPS

Gain: - 2.3 dBi

VSWR: 2.3

Style: Tilt/Swivel

Width: 26.8 mm

Length: 193.5 mm

Diameter: 7.62 mm

Impedance: 50 Ohms

Wavelength: 1/2 Wave

Application: Low Power Wide Area Applications, ISM Applications, IoT Devices, Remote Control, Monitoring, Sensing, Smart Home Networking, Gateways

Unit Weight: 15 g

Polarization: Linear

Power Rating: 10 W

Mounting Style: Panel Mount

Electrical Type: Dipole

Number of Bands: 1 Band

Center Frequency: 868 MHz

Mechanical Style: Whip

Ground Plane Size: 102 mm x 102 mm

Maximum Frequency: 876 MHz

Minimum Frequency: 862 MHz

Termination Style: Connector

Protocol - Sub GHz: RFID

Antenna Connector Type: RP-SMA Plug

Protocol - WiFi - 802.11: LoRaWAN, Sigfox

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
