Technical parameters
Frequency range: 100 kHz - 1 GHz
Weight: 400 g

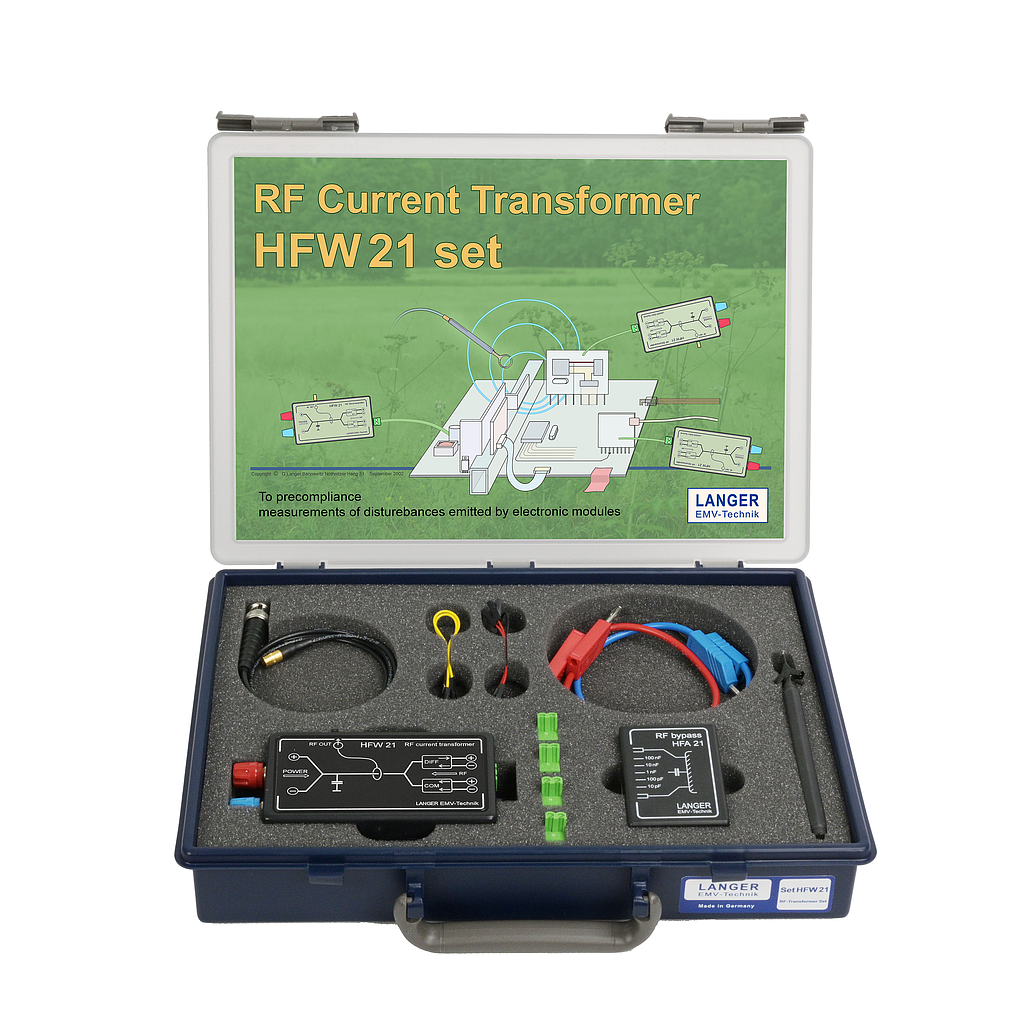

Scope of delivery
1x HFW 21, RF Current Transformer
1x HFA 21, RF Bypass
1x SMB-BNC 1 m, SMB-BNC Measurement Cable
1x HFW 21 acc, Accessories
1x ESA1 m, User Manual
1x HFW 21 case, System Case
Short description
The RF-current transformer measures high-frequency currents at the DUT’s lines. For reproducible measurements a metallic ground plane is needed as a reference plane. The small-scale measurement set-up at the developer’s workspace allows for fast analysis of EMC measuring effects.
The HFW 21 allows for the separate measurement of common-mode currents and differential-mode currents.
Datasheet
