Technical parameters
OE 450 Optical Receiver
Transmission range: DC ... 50 Mbps
Optical fibre connector: 4xØ 2.2 mm
Supply voltage: 12 V / 100 mA
Connector - output: 4xBNC-Stecker, 5 V HCMOS
S25 Optical Sensor
Transmission range: DC ... 50 Mbps
Optical fibre connector: Ø 2.2 mm
Supply voltage: 3 V ... 5 V
Current input: 30 mA

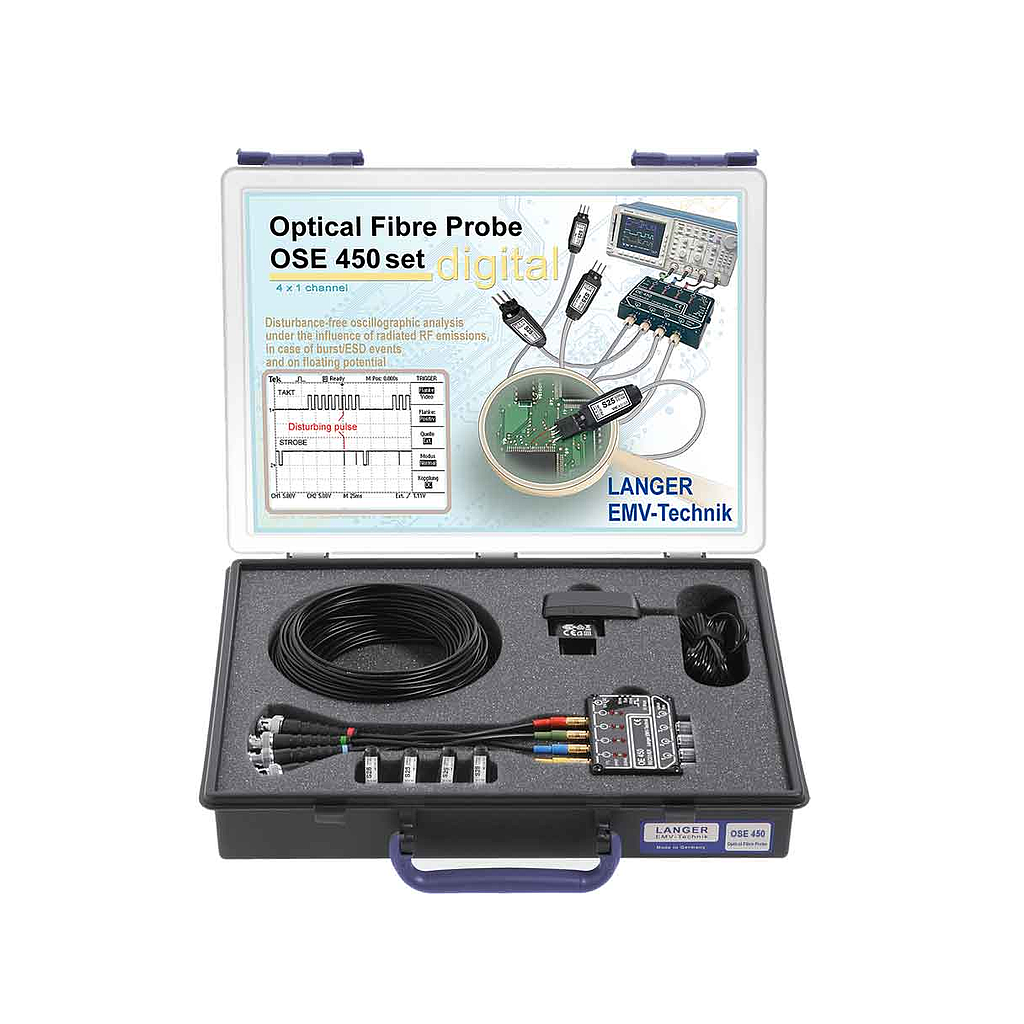

Scope of delivery
1x OE 450, Optical Receiver
4x S25, Optical Sensor (50 Mbps)
4x LWL Ø 2.2 mm 6m, Optical Fiber Single 6m
1x NT FRI EU, Power Supply Unit
1x OSE 450 acc, Accessories
1x OSE 450 case, System Case
1x Digital m, OSE User Manual
Short description
The OSE 450 set is used to transmit digital signals from a disturbed device under test. It consists of four single sensors which are used to detect four digital signals inside the device under test and is connected to the oscilloscope via four fiber optical cables and one receiver.
Within the device under test, the sensor transforms measured logical signals into optical signals.
The optical signals are transmitted to the optical receiver via a fibre optical cable. These can be visualized with an oscilloscope or can be used for controlling other devices.
The system is suitable for signal monitoring from a anechoic chamber, a shielded RF chamber, or in an EMC test lab. Hard- and software can be EMC-optimized.
