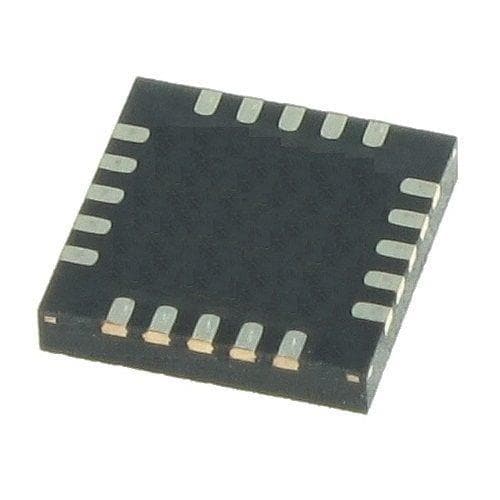

Analog Devices ADIS16260BCCZ Gyroscopes Wide Bandwidth Programmable Gyroscope
ຜູ້ຜະລິດ: Analog Devices Model: ADIS16260BCCZ - ຕິດຕໍ່ພົວພັນ
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Range: +/- 80 deg/s, +/- 160 deg/s, +/- 320 deg/s
Width: 11.2 mm
Height: 5.5 mm
Length: 11.2 mm
Features: Temperature Sensor
Bandwidth: 335 Hz
Resolution: 12 bit
Output Type: Digital
Sensitivity: 0.07326 deg/s/LSB
Sensor Type: 1-axis
Unit Weight: 160.753 g
Acceleration: 2000 g
Sensing Axis: Z
Interface Type: SPI
Mounting Style: SMD/SMT
Moisture Sensitive: Yes
Supply Voltage - Max: 5.25 V
Supply Voltage - Min: 4.75 V
Operating Supply Current: 41 mA
Operating Supply Voltage: 5 V
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
- ຮັັບປະກັນຄຸນນະພາບ
- ຮັບປະກັນຂອງແທ້
- ສົ່ງເຖິງທີ່
- ທຳທຸລະກໍາງ່າຍ
