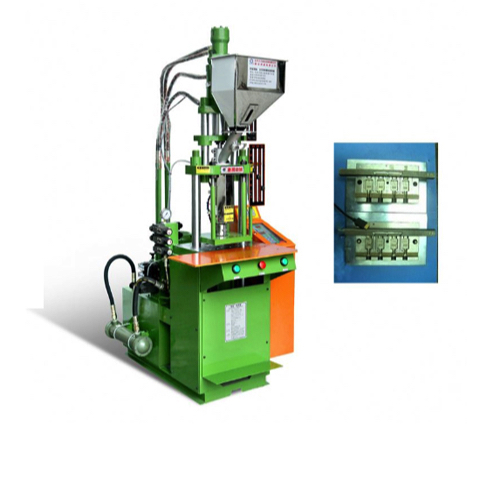

Lonroy JY-200ST Plastic Vertical Injection Machine Molding Molding (190mm)
ຜູ້ຜະລິດ: Lonroy Model: JY-200ST - ຕິດຕໍ່ພົວພັນ
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
The screw diameter: Mm 30, 32, 35
Injection Pressure: kg/c㎡ 1171, 996, 810
Theoretical injection capacity: cm 81, 92, 117
Injection quantity (PS): g 74, 84, 106
Injection quantity (PS): OZ 2.6, 3, 3.8
Injection rate: cm/sec: 62.5, 71, 95
Screw the trip: mm: 115
Screw revolution: rpm: 0-190
Nozzle contact force: Tons 4.45
Nozzle trip: mm 190
Number of temperature control sections: 3
Clamping force: Tons 45
Board size: mm 480X310
Die column spacing: mm 295
Minimum modulus of thick: mm 100/60
Opening stroke: mm 180
Maximum die spacing: mm 280/240
Ejection pressure:Tons 1.5
Ejection stroke: mm 135
Maximum hydraulic pressure: kg/c㎡ 140
Pump discharge volume: l/min 37.2
As a dynamic oil quantity: l 130
Cooling water consumption: l/hr 600-800
The motor power: KW/HP 5.5/7.5
The electric capacity: KW 2.8
The total power consumption: KW 9
Machine weight: Tons 2.6
Mechanical dimensions: m 1.8X1.25X3.08
Pay the ship weight: Tons 2.9
Pay the ship size: m 2X1.45X2.3
