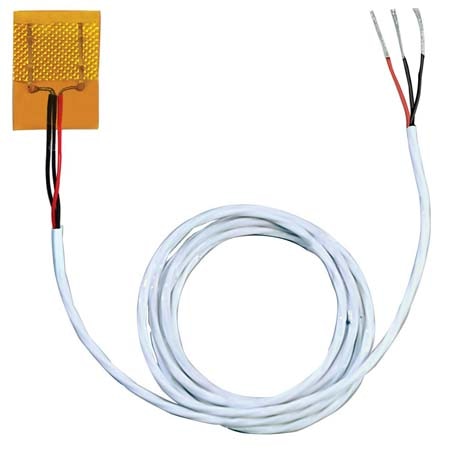

OMEGA SRTD-1 ຕິດຕັ້ງ RTD ພື້ນຜິວ Polyimide ຕອບສະໜອງດ່ວນຮ້ອຍ Cement-On (± 0.5 %, Stripped Leads, 100 Ω, 260 °C)
ຜູ້ຜະລິດ: OMEGA Model: SRTD-1 - ຕິດຕໍ່ພົວພັນ
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Accuracy: ± 0.5 %
Mounting: DIN Platinum
Stability: <0.2°C
Insulation: PFA
Cable Length: 36 in
Sensor Width: 15.7 mm
Response Time: <200 ms
Sensor Height: 0.64 mm
Sensor Length: 25 mm
Cable Diameter: 0.06 in
Stability Note: <0.2°C drift per year at rated service and proper mounting
Number of Wires: 2
Bend Radius, Min: 9.5 mm
Nominal Resistance: 100 Ω
Response Time Note: <200 milliseconds lag on metal surfaces
Self Heating Effect: 0.33 °C / mW
Electrical Connection: Stripped Leads
Insulation Resistance: 50 MΩ
Temperature Coefficient: 0.00385Ω/Ω/°C
Temperature Sensor Type: RTD
Process Temperature, Max: 260 °C
Process Temperature, Min: -200 °C
Insulation Resistance Note: 50 M Ω minimum at 50 Vdc ribbon cable. 100G Ohm minimum at 500 Vdc, round twisted cable (dry conditions at room temperature).
Temperature Coefficient Note: α=0.00385Ω/Ω/°C
