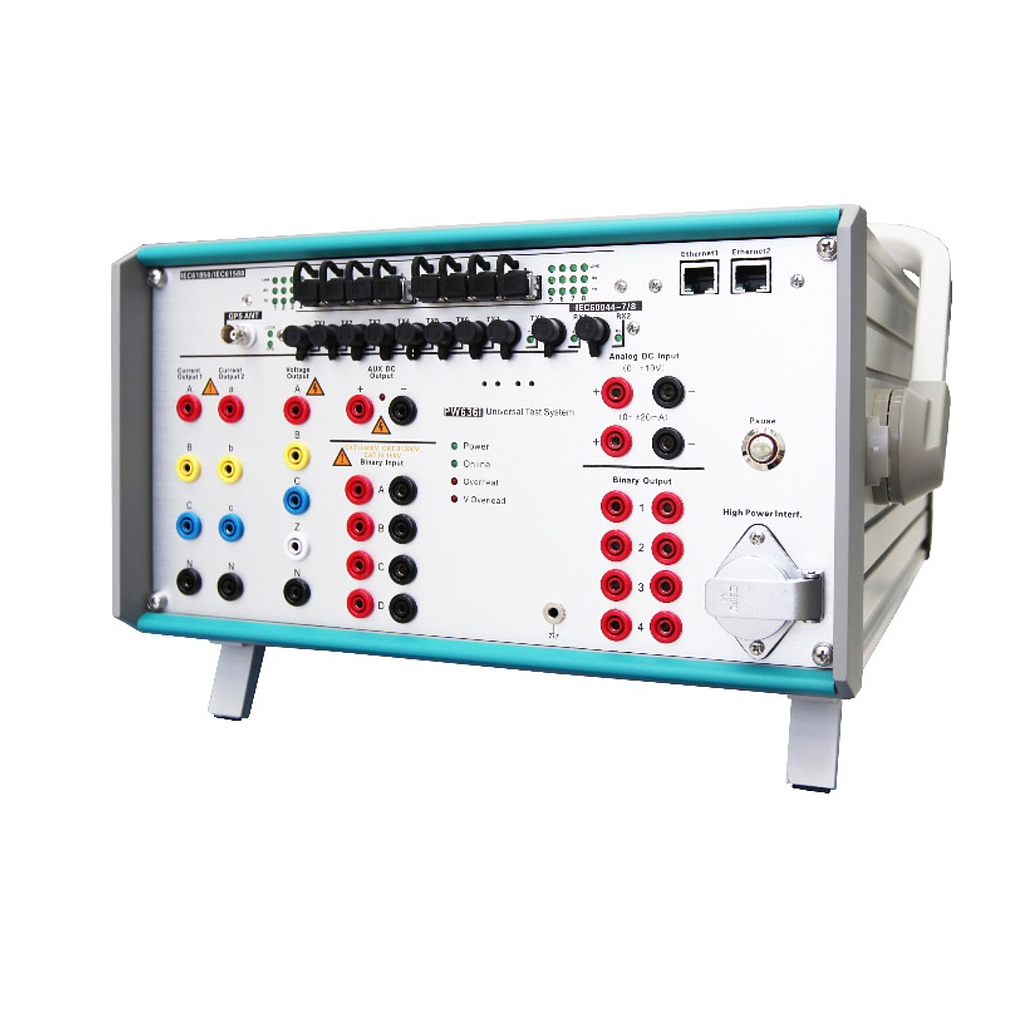

Ponovo PW636i-F ຊຸດທົດສອບ Digital Relay
ຜູ້ຜະລິດ: Ponovo Model: PW636i-F - ຕິດຕໍ່ພົວພັນ
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Voltage generators
Setting range
4‐phase ac(L‐N): 4×0~300V
1‐phase ac(L‐L): 1×0~600V
dc (L‐N): 4×±0~300V
dc (L‐L): 1×±0~600V
Power
4‐phase ac(L‐N): 4×75VA typ., at 300V; 4×50VA guar., at 300V
3‐phase ac(L‐N): 3×100VA typ., at 300V; 3×85VA guar., at 300V
1‐phase ac(L‐L): 1×200VA typ., at 600V; 1×170VA guar., at 600V
dc (L‐N): 4×100W at 300 V
Accuracy:
error < 0.08% rd.+0.02% rg. ; guar. at 0~300V
error < 0.03% rd.+0.01% rg. typ. at 0~300V
Ranges: 300V
Resolution: 10mV for 300Vac
Distortion: < 0.05% typ., (< 0.1% guar.)
Current generators
Setting range
6‐phase ac(L‐N): 6×0~32A
3‐phase ac(2L‐N): 3×0~64A
1‐phase ac(6L‐N): 1×0~180A
dc (6L‐N): 1×±0~180A
Power
6‐phase ac(L‐N): 6×450VA typ. at 32A; 6×400VA guar. at 32A
3‐phase ac(2L‐N): 3×800VA typ. at 64A; 3×700VA guar. at 64A
1‐phase ac(6L‐N): 1×1200VA typ. at 180A; 1×1000VA guar. at 180A
1‐phase dc(6L‐N): 1×1400W typ. at 180A; 1×1000W guar. at 180A
Phase
Angle range: ‐360°~+360°
Accuracy: <0.05° typ., <0.1° guar. at 50/60Hz
Resolution: ±0.001°
Power supply
Nominal input voltage: 110~240Vac
Permissible tolerance: 90~260Vac
Nominal frequency: 50/60Hz
Permissible frequency: 45~65Hz
12 binary inputs, 8 binary outputs
Operation temperature: 0~+50°C
Storage temperature: ‐25~+70°C
Relative humidity: 5~95% non‐condensing
Weight: 23kg
Dimensions (W x H x D): 360mm ×208mm×467mm
