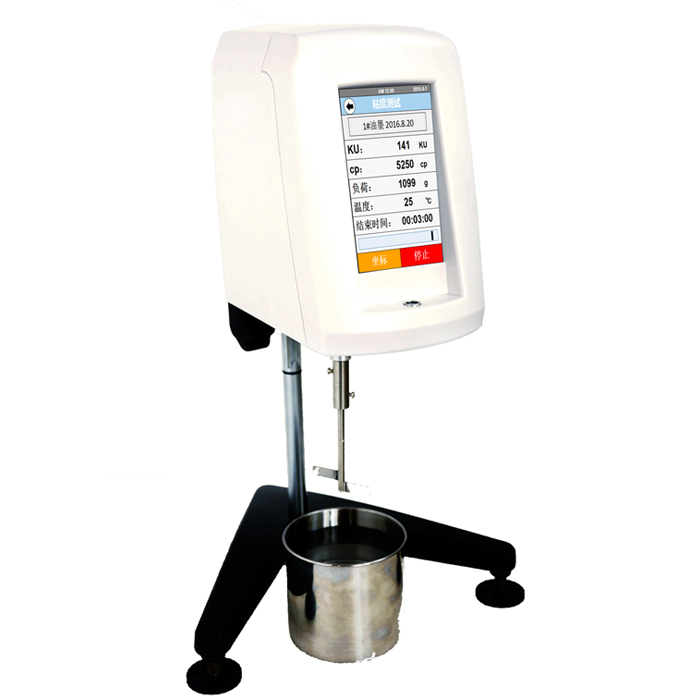

Chế độ điều khiển / hiển thị: Màn hình cảm ứng màu 5 inch
Tốc độ (vòng/phút): 200±0.1
Dải đo:
40.2ku – 141.0ku
32g – 1099g
27 – 5250cp
Độ chính xác đo: ±3%
Độ lặp lại đo: ±1.5%
Bình đo: 1 pint
Chế độ đo thời gian: Cài đặt linh hoạt theo tình hình mẫu
Chức năng đo nhiệt độ: Giao diện cảm biến nhiệt độ tiêu chuẩn (cần kết hợp với cảm biến nhiệt độ)
Quy trình đo tự tạo: Có thể lưu 30 bộ (bao gồm mẫu, thời gian đo, ngày tháng)
Bộ nhớ: 30 bộ dữ liệu (bao gồm ku, g, cp, thời gian, đồ thị, v.v.) có thể lưu được
Đồ thị độ nhớt: Hiển thị đồ thị độ nhớt thời gian thực
In: Dữ liệu, đồ thị có thể in ra (cần chọn máy in)
Giao diện đầu ra dữ liệu:
Giao diện USB: Chèn USB để sao chép dữ liệu trực tiếp (optional)
Giao diện RS232: Kết nối với máy tính
Bộ phận điều nhiệt: options (bao gồm bồn điều nhiệt đặc biệt cho máy đo nhớt, cốc điều nhiệt)
Nguồn: 110v / 60hz hoặc 220v / 50hz
Kích thước tổng thể: 300 × 300 × 450(mm)
Main features:
1.The operation interface is simple and clear, and the viscosity test can be done quickly and conveniently through the creation of test program and data analysis;
2.Viscosity measurement accuracy: automatic calibration by computer, high precision, small error;
3.The display rich content: in addition to KU, G, CP of the three commonly used parameters, and temperature measurements for the full-scale value percentage (graphics), viscosity curve, range overflow alarm, timing, clock date, etc.;
4.Timing measurement: very practical. We measured the paint, ink, paint is a typical non Newtonian fluid, the viscosity and temperature on the outside (except the temperature rise, but also with the decrease of viscosity) measurement time length. The paint has ink and paint is shear thinning characteristics, the longer the time of measurement of viscosity the smaller, if the viscosity of samples of the same class are comparable, the measurement time must be the same;
5.USB interface,insert U disk to copy measurement data directly(optional)
6.Self built 30 sets of test procedures: can be compiled, can quickly call;
7.Access to 30 sets of measurement data and curves; stored in the viscometer, the data include sample name, KU, G, CP value, measurement date, etc.;
8.The real-time display of the viscosity curve: on the screen at any time watch;
9.Can connect micro printer and computer: there are two interfaces, serial connection computer, parallel port connection printer;
10.The front level: the rotor is vertically placed in the sample, it is important to the accuracy of measurement data. Through the observation level in front of the three foot level, which can conveniently adjust the base level of the bubble will be adjusted to the middle position (the current domestic Stormer viscometer on the market are not level regulating device);
11.Rich optional accessories: temperature probe, viscometer thermostat, constant temperature cup, printer, standard viscosity sample, etc.;
