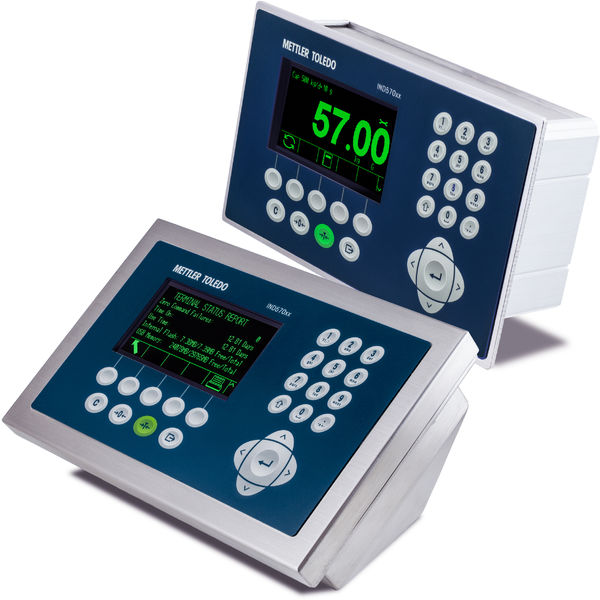

Weighing Terminal IND570xx Mettler Toledo 30116166002

Scale: Analog IDNet POWERCELL Precision

Display: Graphic OLED

Housing: Stainless Steel

Key Pad: Alphanumeric keypad

Voltage: 100 - 240 VAC 24 VDC Version

Automation: Automation Controller

Interfaces: Analog Output ControlNet DeviceNet Digital I/O EtherNet/IP Ethernet TCP/IP Modbus TCP PROFIBUS DP ProfiNet RS232 RS422/485

Application: Blending Checkweighing Dosing Filling Vehicle Weighing

Applications: Filling

Display Size: 5 in

Power Supply: 100 - 240 VAC 24 VDC

Communication: Analog Output ControlNet DeviceNet Digital I/O EtherNet IP Ethernet TCP/IP Modbus TCP PROFIBUS DP ProfiNet RS232 RS4222/485

Mounting Type: Panel

Scale Channels: 1

Data Management: Convenient Printing: Standard and configurable templates Fast Data Export: Via FTP to PC Tables: Multiple customizable tables

Hygienic Design: Yes

Legal for Trade: NTEP OIML

Application Area: Bench, Portable, and Floor Custom Programmable Hazardous Area OEM and System Integrators Tank, Silo, Hopper, and Bin Vehicle and Rail

Housing material: Stainless Steel

Protection Rating: IP65

Weighing Platform: Analog IDNet POWERCELL Precision

Dimensions (LxWxD): 11.38 in x 6.13 in x 8.07 in (289 mm x 155.8 mm x 205 mm)

Hazardous Approval: Division 2 Zone 2/22

CalFREE Calibration: Yes

Custom programmable: Yes

Application Software: Dosing Filling Formulation Over/under checkweighing TaskExpert custom programming Vehicle weighing

Mounting Flexibility: Panel

Communication (Optional): 4-20mA or 0-10VDC Analog Output ControlNet DeviceNet Discrete I/O EtherNet TCP/IP EtherNet/IP Modbus TCP PROFIBUS DP
