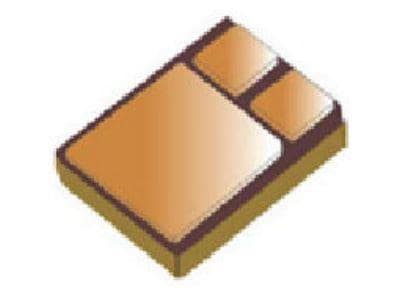

MOSFETs RH MOSFET 150V U3 Microchip Technology MRH15N19U3SR

Fall Time: 6 ns

Rise Time: 4 ns

Technology: Si

Channel Mode: Enhancement

Configuration: Single

Mounting Style: SMD/SMT

Qg - Gate Charge: 32 nC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 75 W

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Typical Turn-On Delay Time: 15 ns

Typical Turn-Off Delay Time: 18 ns

Id - Continuous Drain Current: 19 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Forward Transconductance - Min: 13 S

Rds On - Drain-Source Resistance: 88 mOhms

Vds - Drain-Source Breakdown Voltage: 150 V

Vgs th - Gate-Source Threshold Voltage: 4 V
