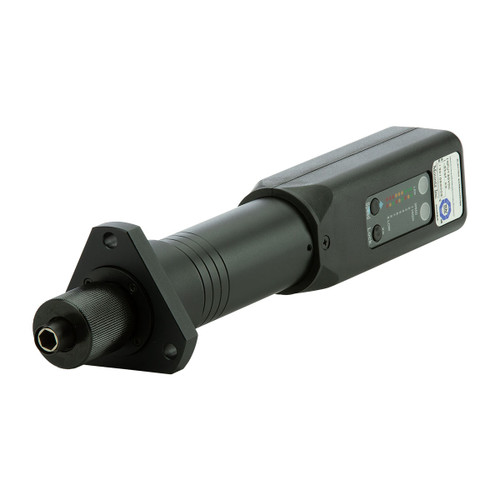

Tô vít điện Mountz BFA060 (145841 ) (9.8 - 58.8 cN.m; 700 - 1600 v/p)

  • Cam kết chất lượng
  • Bảo hành chính hãng
  • Giao hàng tận nơi
  • Đơn giản hóa giao dịch

Hãng sản xuất : Mountz
Model : BFA060
Item : 145841
Xuất xứ: Mỹ
Bảo hành : 12 tháng

Kiểu Driver: Remote Start
Kích thước drive: 1/4 F/Hex
Dải lực xoắn: 0.9 - 5.2 lbf.in / 9.8 - 58.8  N.m
Cài đặt điều chỉnh RPM: 700 - 1600 v/p
Kích thước : Ø 1.25 inch x 9 inch
Trọng lượng: 14.5 oz / khoảng 43.5 g

Chú ý:  khách hàng xem datasheet để chọn mua thêm biến áp STC40-FA (145869), nắp, giá, đầu vít.. phù hợp.

datasheet

manual

KEY FEATURES

Various models that range from 0.9 - 10.4 lbf.in
Robotic style electric screwdriver for automated and fixtured applications.
Drivers include a front mounting flange.
High performance brushless motor design provides durability and reduces the standard maintenance costs for electric screwdrivers.
Designed for high production environments. Minimal heat build-up even when tool is operated continuously.
Over Heat Protection (OHP) and Over Current Protection (OCP) protect driver from damage or malfunction. Features a LED display that signals the tool status for the operator to view.
Can be connected with the Scout Screw Counter.
Requires STC40-FA transformer (power supply).
All models are ESD designed and prevent the occurrence of electrostatic discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation and profitability.
Ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved.
External torque adjustment scale.
Forward and reverse direction by switch. Start and stop output signals
