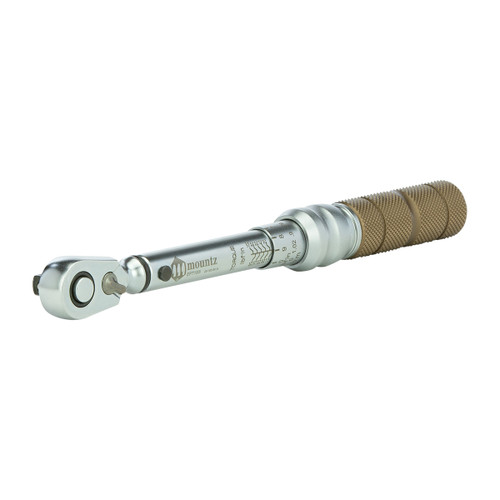

Cờ lê điều chỉnh lực xiết Mountz EPT100i (280050) ( 2.8 - 11.9 N.m; 0.1 N.m)

  • Cam kết chất lượng
  • Bảo hành chính hãng
  • Giao hàng tận nơi
  • Đơn giản hóa giao dịch

Hãng sản xuất : Mountz
Model : EPT100i
Item : 280050
Xuất xứ: Mỹ
Bảo hành : 12 tháng

Kích thước driver: 1/4" Sq.
Dải lực xoắn : 20 - 100 lbf.in / 2.8 - 11.9  N.m
Dải lực xoắn chia độ: 0.5 lbf.in/ 0.1 N.m
L = 193 mm
Trọng lượng: 0.18 kg

datasheet

manual

FEATURES:
The adjustable click torque wrench features an external adjustment torque scale, which allows an operator to quickly adjust the torque setting on the tool as needed for different applications. The cost effective click wrenches are durable and robust for a wide variety of industrial fastening applications. Our EPT adjustable click torque wrench is built with high quality materials to ensure low repair frequency and less repair costs.
Designed and manufactured to meet or exceed the accuracy and repeatability requirements of ISO 6789:2003
(Tools < 10 N.m (+/- 6% of setting): EPT100i
(Tools > 10 N.m are +/- 4% of setting): EPT250i - EPT750F
EPT Adjustable Click Torque Wrench Specifications
Durable and robust for industrial fastening applications.
Adjustable torque wrench with a square drive. Bi-directional ratchet head.
External dual scale (American & S.I.) Graduation collar on the torque handle.
Easy to read laser marked scale.
Crafted with strong steel shaft with high corrosion resistance.
Lightly knurled non-slip grip.
48 tooth ratchet (for models EPT250i - EPT750F).
60 tooth ratchet (for EPT100i).
Positive lock with spring loaded pull-down ring.
Positive “click” can be heard and felt when torque is reached.
Additional mechanical design features & benefits
This adjustable click wrench is ideal for field service, maintenance or production environments.
