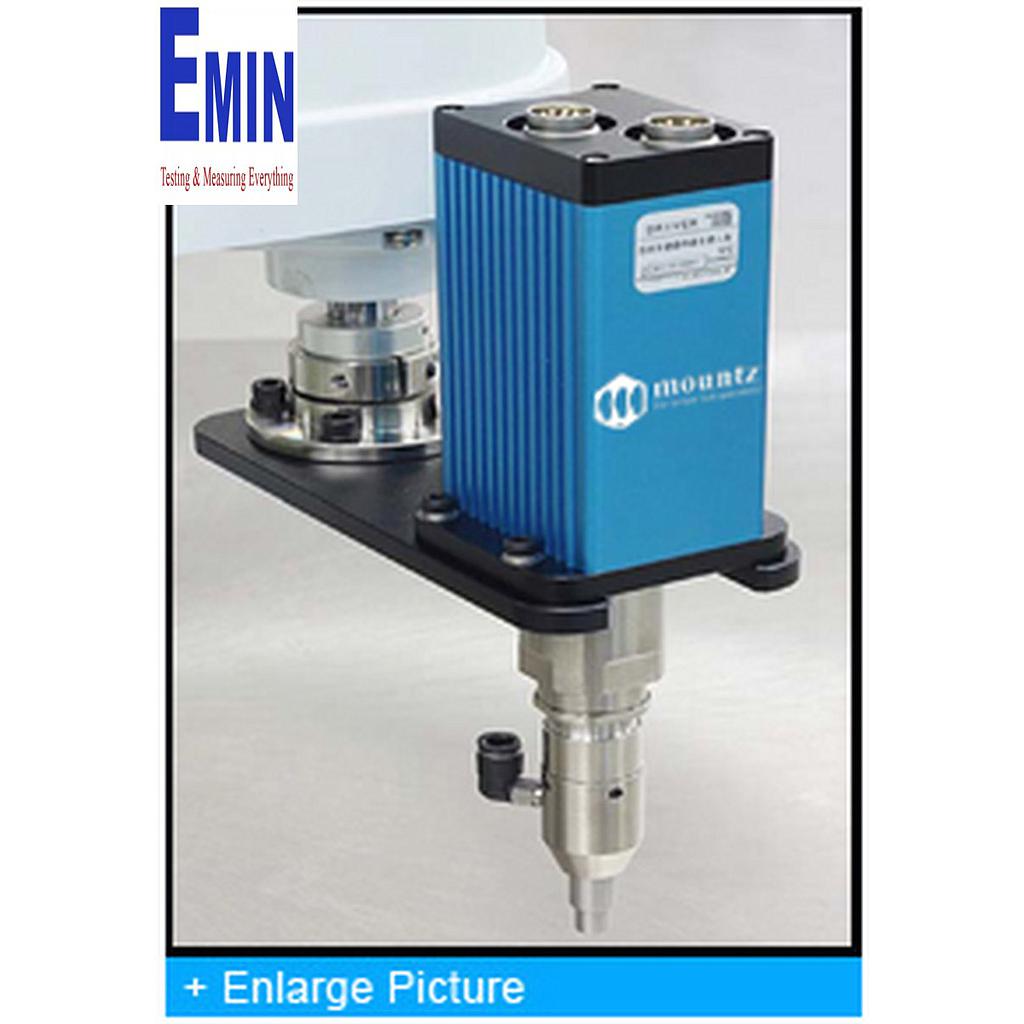

Robot bắt vít Mountz SH100R100-A (145945) (196.2 - 833.9 cN.m; 100 - 500 v/p)

  • Cam kết chất lượng
  • Bảo hành chính hãng
  • Giao hàng tận nơi
  • Đơn giản hóa giao dịch

Hãng sản xuất : Mountz
Model : SH100R100-A
Item : 145945
Xuất xứ: Mỹ
Bảo hành : 12 tháng

Kiểu Driver: Remote Start
Kích thước drive: 1/4 F/Hex
Dải lực xoắn: 17.4- 73.8  lbf.in / 196.2 - 833.9  cN.m
Cài đặt điều chỉnh RPM: 100 -  500 v/p
Kích thước : 10.025 inch

Chú ý:  khách hàng xem datasheet để chọn mua thêm phụ kiện phù hợp

Chi tiết




1. Electric Screwdrivers (AC servo motor)
Various models that range from 0.43 - 564.2 lbf.in
Current controller servo motor features precision accuracy and repeatability performance. Low maintenance with an extended life cycle.
Low inertial force provides smooth reaction-less operation with little G force to assembled parts.
Low noise, vibration and maintenance.

2. Controller
Programmable digital torque setting with memory for 8 preset torque settings.
Real-time monitoring and torque control of the tightening process.
Real time torque data and curve display (Torque vs Time, Torque vs Speed, Torque vs Angle)
Real time fastening data output (RS-232C).
Selectable speed settings.
Programming and monitoring with Smart-Manager (PC software).
Programmable multi-sequence operation.
Displays error information by code.
Maintenance information and history memory. Firmware upgrade by Com port.

3. Preset Parameter Settings
Five selectable units of torque measurements: ozf.in, lbf.in, cN.m, N.m, Kgf.cm.
Selectable settings for Torque, Speed, Min & Max Angle, and Soft Start time.
Maximum angle control and verification
Minimum angle control and error reporting

4. I/O Interface & Settings
50P I/O interface to a PLC or 8 direct sensor ports.
Sensor ports for preset selection and screw counting.
Input via sensor ports for presets.
Input / Output for PLC.

5. Output Signal Types
Count complete
Torque up and Count complete
Alarm, screw missing

6. Built-in Screw Counter
Detection of fastening error and displays error condition.
Visual assembly fastener count (count up or down), including total count.
Real time monitoring by PC program.
Detects - cross threading, omissions, unfinished rundowns and cycle complete.
0 to 99 screws

7. Panel Display
Shows the status with 6-digit 7-segment LED display
Sequence setting (Preset #).
Fastening torque.
Fastening process status. Min & Max Angle (OK/NG).
Min and Max Angle setting.
Torque unit setting.
Preset torque setting.
Preset speed and actual RPM.
Turns and fastening time.
Controller warning and alarm system. Signals the status  of the controller.

8. Screw Counting Selections
Start (Continuous on)
Start Pulse with time limit
Start Pulse and Finish pulse

9. Motor Run Time Limits
Motor run time limits, forward and reverse.
Motor stall time limit.
Sleep time.
Motor acceleration for soft start.
