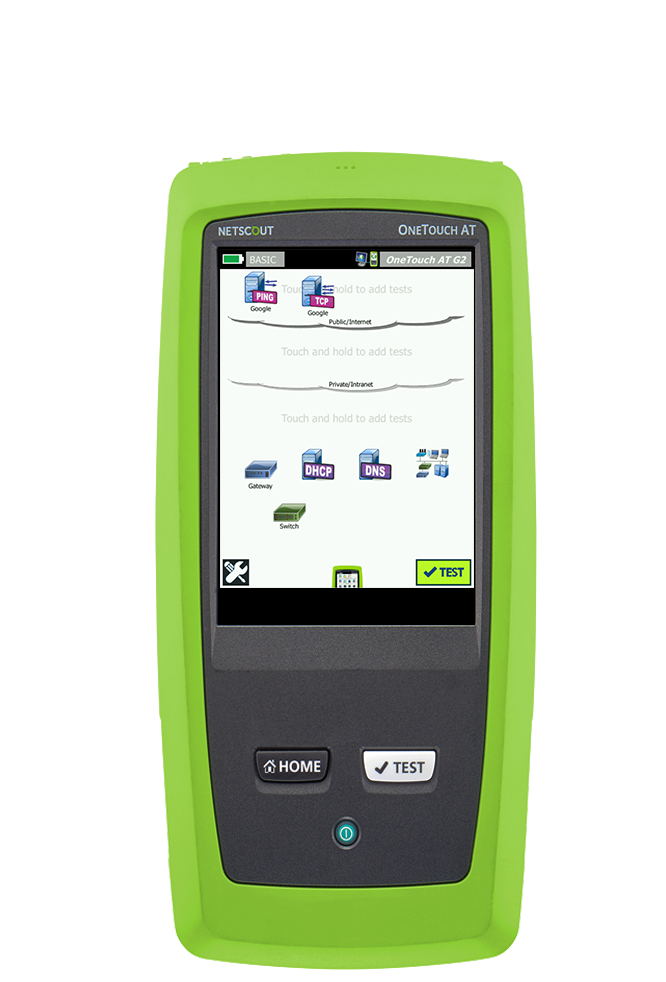

OneTouch AT Network Assistant Netally 1T-MAINFRAME

General

Dimensions (with module and battery installed): 10.3 in x 5.3 in x 2.9 in (26.2 cm x 13.5 cm x 7.3 cm)

Weight (with module and battery installed): 3.5 lb (1.6 kg)

Display: 5.7 in (14.5 cm) LCD with projected capacitance touchscreen, 480 x 640 pixels

External AC Adapter/Charger: Input: 100-240 V AC, 50-60 Hz, 1.0 Amps

 Output: +15 V Dc, 2.0 Amps

Battery type: Lithium ion battery pack, 7.2 V

Battery life: Approximately 3-4 hours depending on type of usage

 4 hours to charge from 10% capacity to 90% capacity with the unit powered off

Memory: Internal: 2 GB shared between system and user files

 SD card: 4/8 GB, brand and model selected for optimal performance

 USB 2.0 type A port: for use with USB mass storage devices

Cable types: 100 Ω Unshielded Twisted Pair (UTP) LAN cables.

 100 Ω Shielded or Screened Twisted Pair (SeTP) LAN cables.

 TIA Category 3, 4, 5, 5e, and 6. ISO Class C, D, E, and F.

Cable length measurement: Measurable cable lengths are from 3 ft (1 m) to 656 ft (200 ms).

Environmental:

Operating temperature: 32°F to 122°F (0°C to 50°C)

Battery charging temperature: 32°F to 104°F (0°C to 40°C)

Storage temperature:

 -40°F to 160°F (-40°C to 71°C)

 -4°F to 122°F (-20°C to 50°C) for periods longer than 1 week

Operating relative humidity (% RH without condensation):

 5% to 45% at 32°F to 122°F (0°C to 50°C)

 5% to 75% at 32°F to 104°F (0°C to 40°C)

 5% to 95% at 32°F to 86°F (0°C to 30°C)

Shock and vibration: Meets the requirements of MIL-PRF-28800F for Class 3 Equipment

Safety: CAN/CSA-C22.2 No. 61010-1-04, IEC 61010-1:2001

Operating altitude: 13,123 ft (4,000 m), 10,500 ft (3,200 m) with AC adapter

Storage altitude: 39,370 ft (12,000 m)

Pollution degree: 2

EMC: EN 61326-1:2006

Wi-Fi Antennas:

Internal Wi-Fi antennas: (3) internal 2.4 GHz, 1.1 dBi peak, 5 GHz, 3.2 dBi peak antennas supporting 3×3 MIMO technology

External directional antenna: Antenna, frequency range 2.4 – 2.5 and 4.9 – 5.9 GHz

 Minimum gain 5.0 dBi peak in the 2.4 GHz band, and 7.0 dBi peak in the 5 GHz band

External antenna connector (external antenna port is receive-only, no transmit): Reverse SMA

Includes: (1) OneTouch AT Platform
