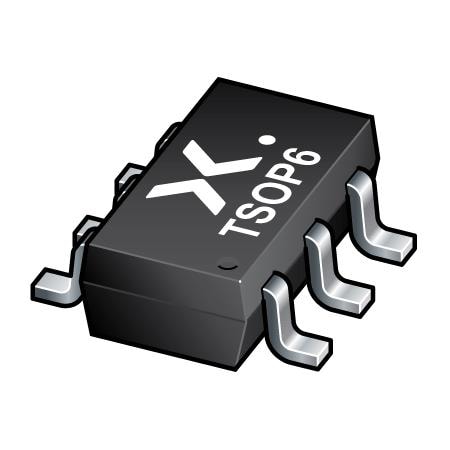

MOSFET SOT457 K NÊN 30V Nexperia PMN25ENEAH

Fall Time: 7 ns

Rise Time: 18 ns

Technology: Si

Channel Mode: Enhancement

Mounting Style: SMD/SMT

Qg - Gate Charge: 14 nC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 1.7 W

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Typical Turn-On Delay Time: 4 ns

Typical Turn-Off Delay Time: 15 ns

Id - Continuous Drain Current: 6.4 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Forward Transconductance - Min: 24 S

Rds On - Drain-Source Resistance: 24 mOhms

Vds - Drain-Source Breakdown Voltage: 30 V

Vgs th - Gate-Source Threshold Voltage: 2.5 V
