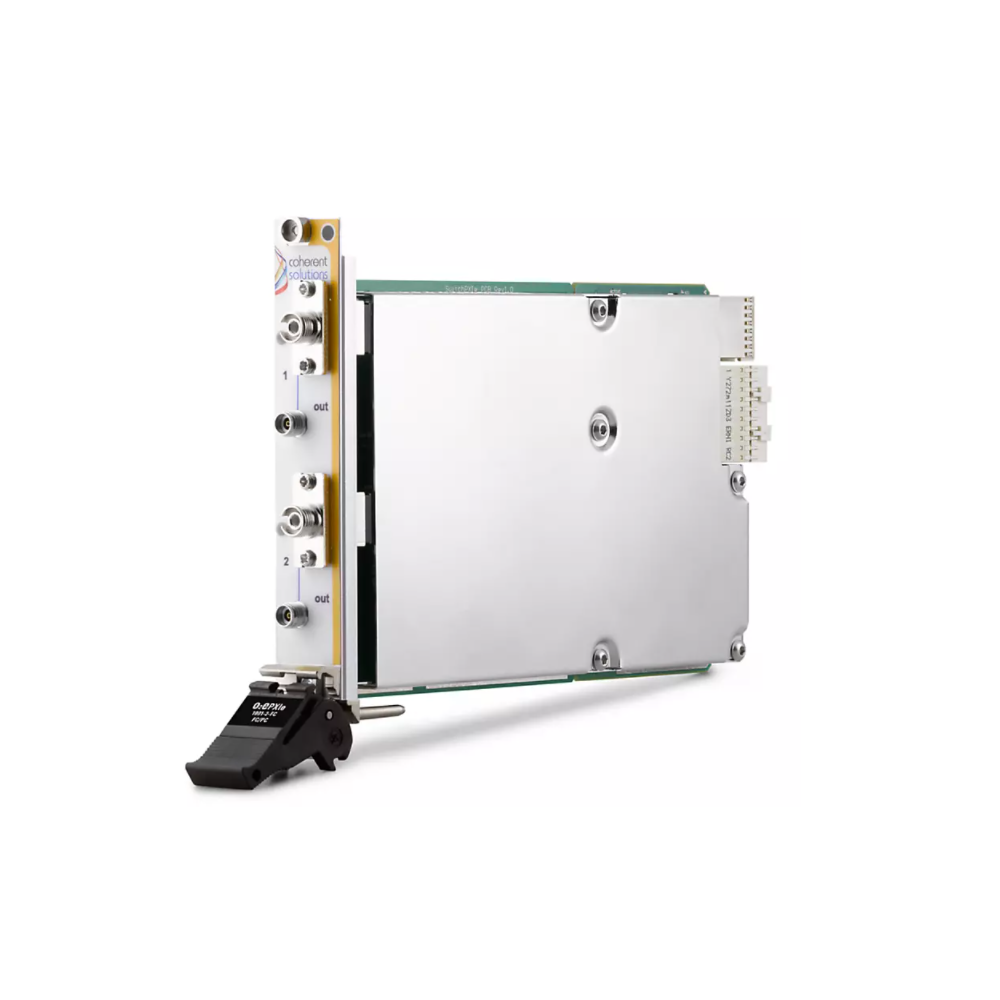

PXI Optical-to-Electrical Converter NI CohSol O2EPXIe-1001-2 (10GHz, 2Ch, DC Multimode, SC Connector)

O2E 10 GHz 2 Ch DC Multimode SC Connector

Bus Connection: PXIe

PXI: slots 1

Dimensions (HxWxD): 130 mm x 20mm x 215 mm (5.1” x 0.8” x 8.5”)

Weight: ~ 1 kg (~2.2 lbs)

Operating temperature range: 5 °C to 45 °C (41 °F to 113 °F)

Storage temperature range: -40 °C to 70 °C (-40 °F to 158 °F)

Bandwidth

9.5 GHz (typ)

8.5 GHz (min)

Wavelength: 750 to 1650 nm

Calibrated wavelength: 850, 1310, 1490, 1550

Optical connector type: FC/PC, FC/APC, SC/APC, SC/PC

Number of channels: 1 or 2

RF coupling: DC

RF connector: SMA (3.5 mm)

RF impedance: 50 ohms

Fiber: 62.5u core MMF

Damage level peak power: 7 dBm

Optical return loss: 16 dB

PDL at 1550 nm: _

Conversion gain

430 V/W (typ) at 1550 nm

450 V/W (typ) at 1310 nm

250 V/W (typ) at 850 nm

Low frequency cutoff: 0 Hz

Noise equivalent power: 0.15 fW/Hz

Average power reading: Yes

Converts broadband light signals to electricity for optical test applications.

The PXI Optical-to-Electrical Converter provides high-bandwidth optical-to-electrical (OE) functionality. You can choose from both AC- and DC-coupled models with up to two channels in a variety of conversion gain and operating wavelength ranges. The PXI Optical to Electrical Converter is ideal for reliable testing in manufacturing or research and development environments.
