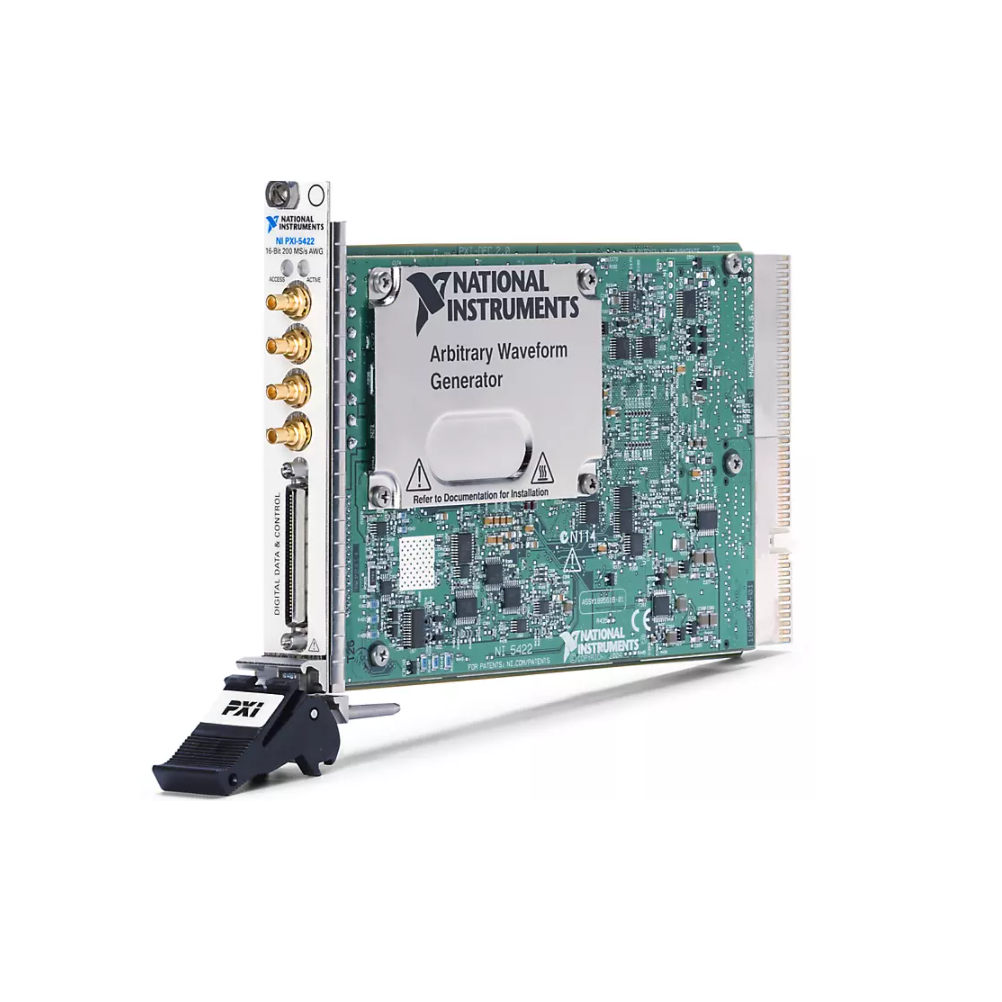

PXI Waveform Generator NI PXI-5422 (1-Channel, ±6V, 8 MB, 80 MHz)

Supports Scripting: Yes

Bus Connector: PXI Hybrid

Maximum Bandwidth: 80 MHz

Maximum Update Rate: 200 MS/s

Analog Output Resolution: 16 bits

Analog Output Voltage Range: -6 V to 6 V

Analog Output Onboard Memory Size: 8 MB

Number of Output Channels: 1

Supports Arbitrary Waveforms: Yes

RF Signal Generation: No

Supports Digital Upconversion: No

Generates standard functions and user-defined, arbitrary waveforms as part of a PXI system.

PXI Waveform Generators can produce precise waveforms including sine, square, triangle, and ramp as well as arbitrary, user-defined waveforms using sequences of data or streaming continuously from a host or peer-to-peer instrument within the PXI system. These instruments are ideal for tightly synchronized, mixed-signal test systems in scientific research or test of semiconductor devices, consumer electronics, automotive, and aerospace/defense.
