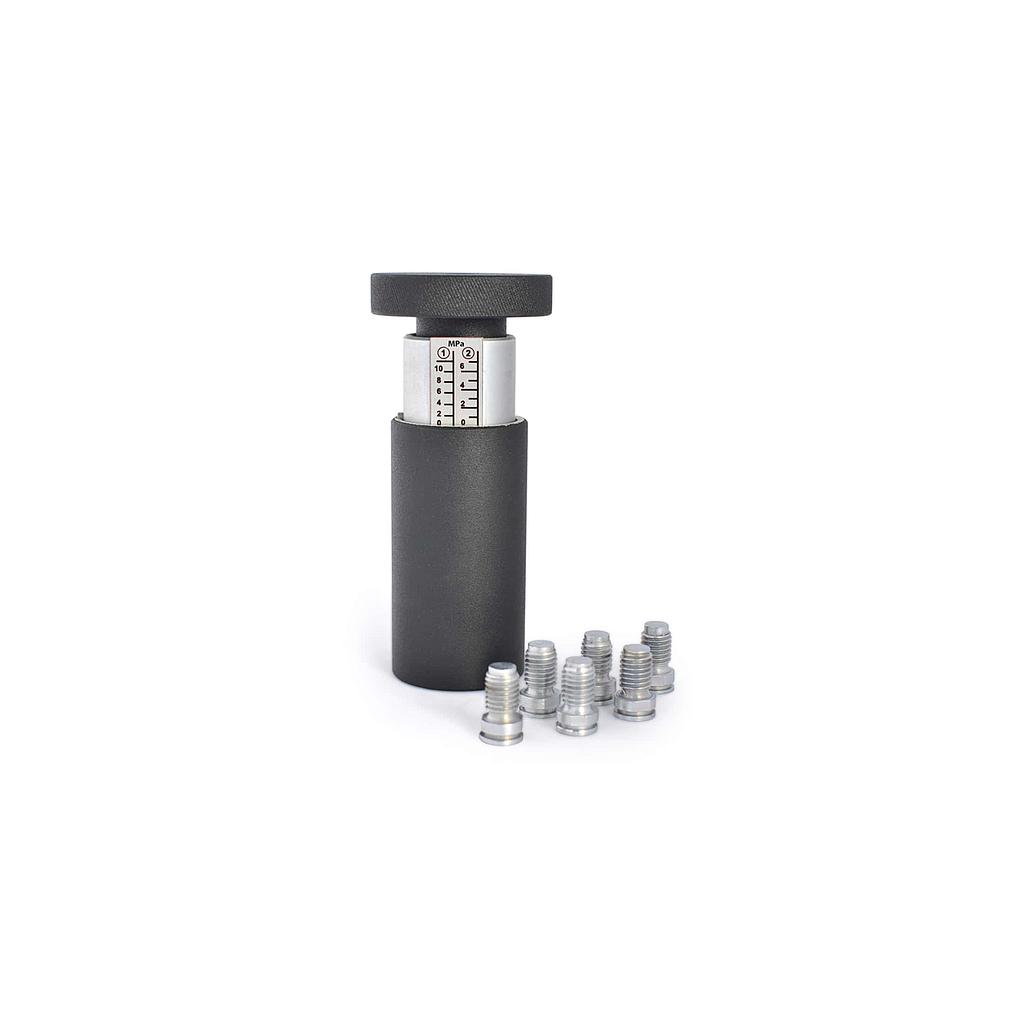

Thiết bị đo độ bám dính NOVOTEST AC-4624 (0-200kgf)

Dải lực: 0-200kgf

Đường kính đe tán, mm: 15,1 (№ 1) và 19,5 (№ 2)

Dải thang đo, MPa:

- Đe tán №1: ~10 MPa (100)

- Đe tán №2: ~6 MPa (60)

Thang đo, MPa: 1 (№ 1) và 2 (№ 2)

Theo chuẩn: ASTM D4541, EN13144, ISO4624, ISO16276-1

Khối lượng máy: ≤1kg

Kích thước máy, mm: 150×70

Kích thước đóng gói, mm: L180*W150*H100

Cung cấp bao gồm:

- Máy kiểm tra độ bám dính

- Đe tán: № 1 - 3 chiếc, № 2 - 3 chiếc.

- Cưa lỗ (máy cắt) để cắt vùng thử nghiệm

- Cờ lê

- HDSD

- Hộp đựng

Description

- Adhesion is the tendency of dissimilar particles or surfaces to cling to one another. In the field of quality testing, adhesion of coatings to the base material, such as: paints, plastic, epoxy mixtures, sprayed metal, laminate to wood and other metal and polymer coatings, is most often measured.

- Tensile Adhesion Tester NOVOTEST AC-4624 is a pull-off type adhesion tester for determining the adhesion strength in MPa and can be used in accordance with EN13144, ISO4624 and ISO16276-1.

- The device is very easy to use, universal, because it can be used with almost any coating, has a reliable design, which has virtually no limitations on the life of the product, and accurate as a device that measures adhesion in numerical terms.
