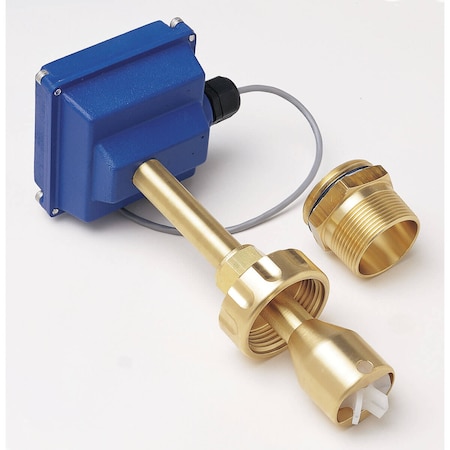

OMEGA FP6512 (± 1.5 %, 93 °C, 2 in, NPT Male, 40 in, 5 to 24 Vdc, 11 Hz/fps)

Weight: 2.3 kg

Accuracy: ± 1.5 %

K-Factor: 11 Hz/fps

Approvals: RoHS, CE

Cable Type: 3 Conductor Wire Shielded Cable

Wire Gauge: 22 AWG

Cable Length: 18 ft

Output Detail: Square wave, 11 Hz/fps (approx.), current sinking output, 20 mA maximum, NPN (Hall Effect)

Pressure Type: Gauge

Velocity, Max: 30 ft/s

Velocity, Min: 0.3 ft/s

Pipe Size, Max: 40 in

Pipe Size, Min: 12 in

Supply Current: 1.5 mA

Supply Voltage: 5 to 24 Vdc

Cable Length Note: #22 AWG 3-conductor, 5.5 m (18') standard; 610 m (2000') max

Electrical Output: Square Wave, current sinking output

Materials, Wetted: Brass, Bronze, FKM, Polypropylene, Ruby Ring, Tungsten Carbide

Supply Power Note: 5 to 24 Vdc, 1.5 mA

Mounting Orientation: N/A

Operating Pressure Note: 200 psi at 24°C

Operating Pressure, Max: 200 psi

Operating Pressure, Min: 0 psi

Process Connection Size: 2 in

Process Connection Type: NPT Male

Process Temperature Note: 93°C (200°F) at 0 psig

Process Temperature, Max: 93 °C

Material Construction Option: Brass
