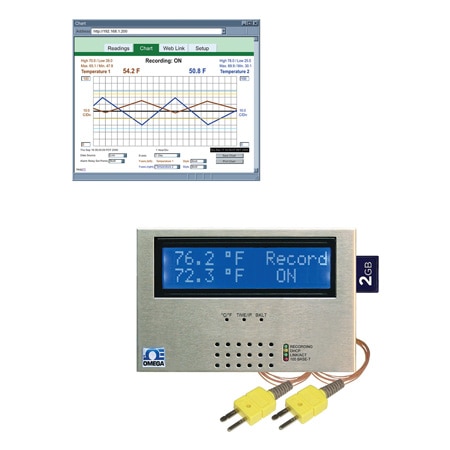

Giám sát nhiệt độ qua web OMEGA ISD-TC (J, K, T, E, R, S, B, C, N, L, Thermocouple, Wall Bracket Mount)

Alarm: Two contact inputs, TTL 0.5 mA with 10K pull-up; one open collector output 150 mA @ 30 Vdc

Width: 5.13 in

Height: 1.31 in

Length: 3.47 in

Memory: 2 GB SD Flash Card

Weight: 1.02 lb

Display: LCD

Software: OPC Server; macro for data logging in Excel program; compatible with Windows® operating systems

Approvals: CE, FCC-B

Input Type: External

Form factor: Wall Bracket Mount

Memory Note: 2GB card: 8 months of data storage at 1 second recording intervals or 7 years at 10 second intervals

Samples,Max: 85k Samples, Interval 16 Samples / Second, 1 Second recording intervals or 7 years at 10 sec intervals

Sensor Type: Thermocouple

Display Note: 32 digits 4.8 x 9.7 mm (0.19 x 0.38")

Relay Output: 1.5 A @ 30 Vdc

Configuration: Internal Web UI

Data Interface: Ethernet

Supply Voltage: 9 to 12 Vdc

Measurement Type: Thermocouple

Number of Relays: 2

Supply Power Note: Safety Qualified AC Power Adaptor:, Input: 100 to 240 Vac, 50/60 Hz, Nominal Output: 9 Vdc @ 0.5 A,(included), Back-up Battery: 9 Vdc, alkaline (included)

Supply Power Type: DC/Battery

Thermocouple Type: J, K, T, E, R, S, B, C, N, L

Data Interface Note: Ethernet : (RJ45) Fixed or auto negotiating 10/100BASE-T, AUTO MDI/MDIX Protocols: TCP, UDP, SNMP, SMTP, NTP, ARP, ICMP, DHCP, DNS, HTTP, and Telnet

Battery Size and Type: Alkaline 9V

Temperature Stability: 0.08°C/°C

Cable Temperature, Max: 125 °C

Cable Temperature, Min: -40 °C

Number of Measurements: 2

Temperature Resolution: 1 °C, 0.1 °C

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -40 °C

Operating Temperature, Max: 60 °C

Operating Temperature, Min: 0 °C

Thermocouple Lead Resistance: 100 Ω max

Battery Operating Temperature: -18 to 55 °C

Thermocouple Cold End Tracking: 0.05°C/°C

AC Adaptor Operating Temperature: 0 to 40 °C
