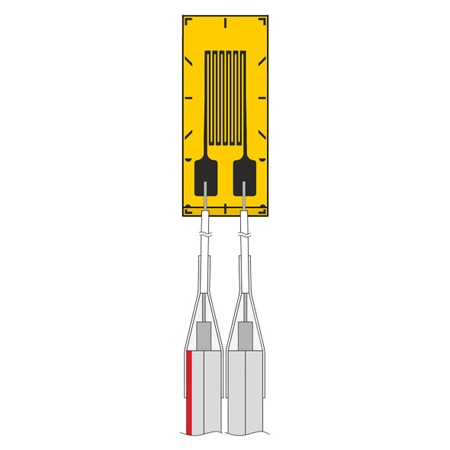

Cảm biến strain đã được nối dây sẵn để dễ dàng lắp đặt OMEGA KFH-03-120-C1-11L3M3R (Wire Leads, 120 Ω, 1.5 Vac)

Adhesive: SG496, SG401, TT300

Materials: Constantan, Polyimide

Pack Size: 10

Tolerance: ±1%

Elongation: 20000 µm/m to 25000 µm/m

Grid Style: Linear

Grid Width: 1.96 mm

Grid Length: 0.3 mm

Sensitivity: ±0.2%

Wire Length: 3 m

Gauge Factor: 2

Carrier Width: 3.9 mm

Input Voltage: 1.5 Vac

Carrier Length: 4.5 mm

Grid Thickness: 5 μm

Mechanical Life: >10^7 cycles

Carrier Thickness: 45 μm

Grid Length Range: 3 mm

Nominal Resistance: 120 Ω

Mechanical Life Note: >1 x 107 cycles at zero point variation ≤ 300 µm/m, 5 x 106 cycles at zero point variation ≤ 30 µm/m

Resistance Tolerance: ±1%

Electrical Connection: Wire Leads

electrical-connection: Wire Leads

Gauge Factor Tolerance: ± 1 %

Temperature Compensation: 10.8 x 10-6

Operating Temperature, Max: 155 °C

Operating Temperature, Min: -10 °C

Material Construction Option: Steel
