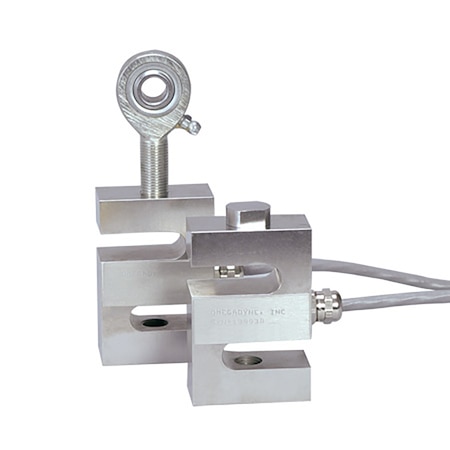

Load cell S-Beam thép không gỉ OMEGA LC111-2K (2000 lbF)

Width: 1 in

Height: 3 in

Length: 2 in

Weight: 2.5 lb

End Rod: REC-012M

Linearity: ± 0.03%

Materials: 17-4 PH Stainless Steel

Force Type: Tension

Hysteresis: ± 0.02%

Load Button: LBC-012

Cable Length: 0 ft

Overload, Max: 300% FS

Repeatability: ± 0.01%

Safe Overload: 1.5

Load Cell Type: S-beam

Supply Voltage: 10 Vdc

Input Resistance: 350 ± 10 Ω

Mating Connector: MIL-26482-I 10-6S

Electrical Output: 3 mV/V

Output Resistance: 350 ± 10 Ω

Supply Power Note: 10 Vdc, 15 Vdc maximum

Calibration Option: 5 POINT NIST

Interchangeability: 0.0025

Load Cell Capacity: 2000 lbF

Zero/Balance Error: ± 1%

5-Point Calibration: 0%, 50%, 100%, 50%, 0%

Thermal Span Effect: 0.002% FSO/°C

Thermal Zero Effect: 0.002% FSO/°C

Electrical Connection: N/A

Full Scale Deflection: 0.02 in

Wiring/Connector Table: Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected

Process Temperature, Max: 71 °C

Process Temperature, Min: 17 °C

Operating Temperature, Max: 93 °C

Operating Temperature, Min: -40 °C
