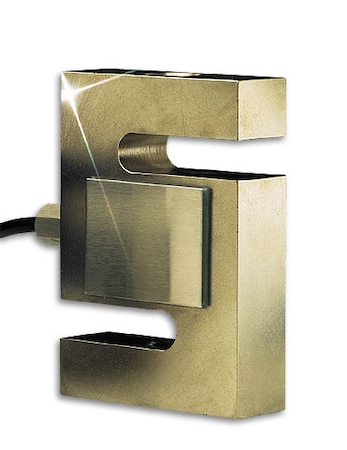

Load cell S-Beam chống ăn mòn OMEGA LCCA-2K (2000 lbF)

Width: 1 in

Height: 3 in

Length: 2 in

Weight: 3 lb

End Rod: REC-012M

Accuracy: ± 0.037%

Linearity: 0.0003

Materials: Stainless Steel

Force Type: Compression, Tension

Hysteresis: 0.0002

Wire Gauge: 22 AWG

Load Button: LBC-012

Cable Length: 20 ft

Overload, Max: 300% FS

Repeatability: 0.0001

Safe Overload: 150% FS

Load Cell Type: S-beam

Supply Voltage: 10 Vdc

Creep in 20 min: 0.0003

Bridge Resistance: 350 Ω

Electrical Output: 3 mV/V

Supply Power Note: 10 Vdc, 15 Vdc maximum

Calibration Option: NIST

Interchangeability: 0.0025

Load Cell Capacity: 2000 lbF

Zero/Balance Error: 0.01

Thermal Span Effect: 0.0008% rdg/°F

Thermal Zero Effect: 0.0015% FS/°F

Electrical Connection: Cable

Full Scale Deflection: 0.02 in

Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

Process Temperature, Max: 66 °C

Process Temperature, Min: -18 °C

Operating Temperature, Max: 66 °C

Operating Temperature, Min: -18 °C
