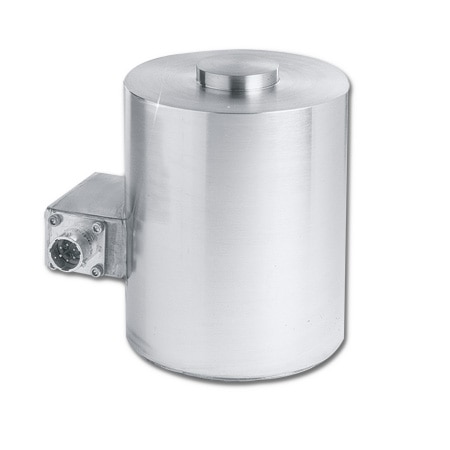

Load cell dạng bình theo tiêu chuẩn mét OMEGA LCM1001-5K (5000 kgf)

Height: 151 mm

Weight: 4.5 kg

Linearity: ± 0.05%

Materials: 17-4 PH Stainless Steel

Top Plate: LCM1000-TP4

Base Plate: LCM1000-BP4

Force Type: Compression

Hysteresis: ± 0.03%

Cable Length: 15 ft

Overload, Max: 300% FS

Repeatability: ± 0.02%

Safe Overload: 150% FS

Outer Diameter: 89 mm

Supply Voltage: 10 Vdc

Input Resistance: 350 ± 10 Ω

Electrical Output: 2 mV/V

Enclosure Ratings: IP67

Output Resistance: 350 ± 10 Ω

Supply Power Note: 10 Vdc, 15 Vdc maximum

Calibration Option: 5 POINT NIST

Interchangeability: 0.0025

Load Cell Capacity: 5000 kgf

Zero/Balance Error: ± 1%

5-Point Calibration: 0%, 50%, 100%, 50%, 0% (in Compression)

Thermal Span Effect: ± 0.0018% rdg/°C

Thermal Zero Effect: ± 0.0018% FS/°C

Electrical Connection: Cable

Full Scale Deflection: 0.02 in

Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input; Yellow: Shield

Process Temperature, Max: 71 °C

Process Temperature, Min: 16 °C

Operating Temperature, Max: 100 °C

Operating Temperature, Min: -46 °C
