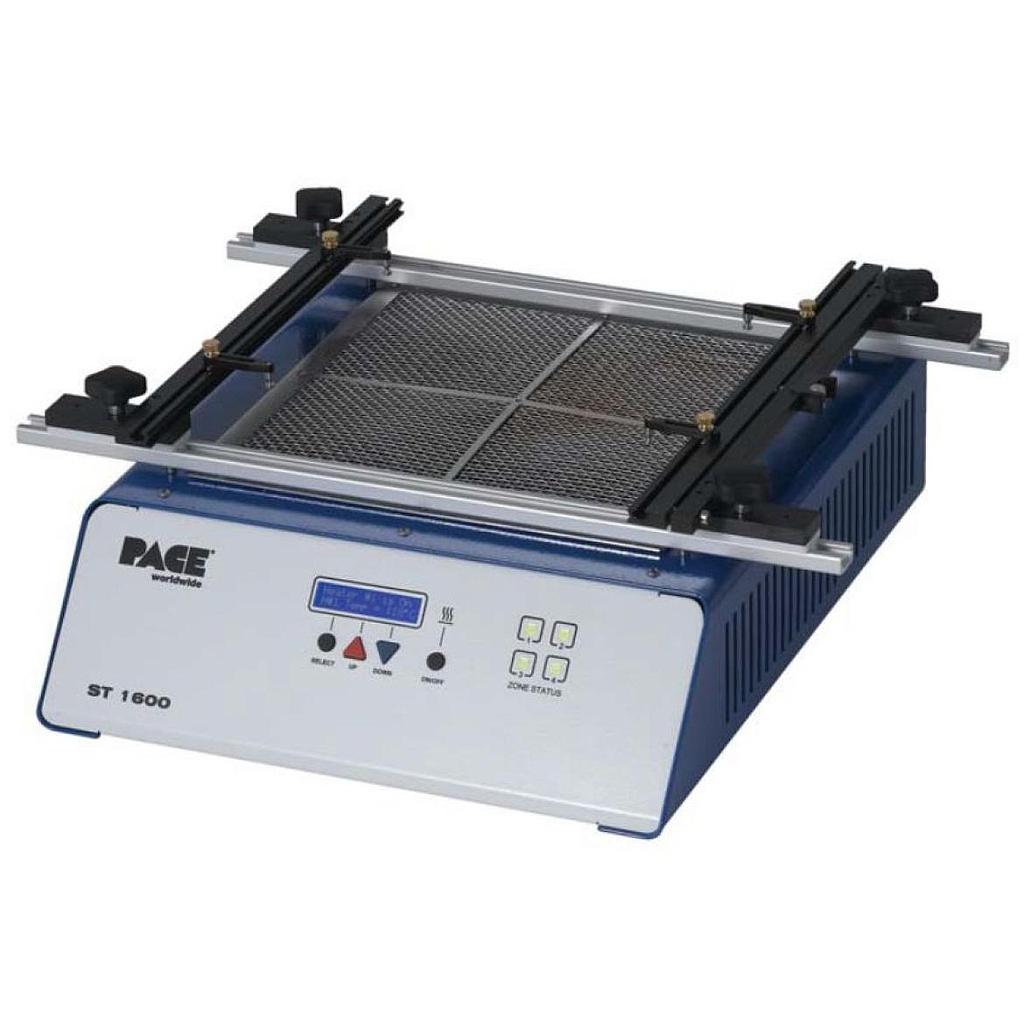

Thiết bị tạo nhiệt có thể lập trình PACE ST 1600 (8007-0564)

  • Hãng sản xuất: PACEWORLDWIDE
    Model: ST 1600
    • Yêu cầu báo giá Yêu cầu báo giá
  • 60,489,000 VND
  • Gọi để có giá tốt

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Cam kết chất lượng
  • Bảo hành chính hãng
  • Giao hàng tận nơi
  • Đơn giản hóa giao dịch
Nhà sản xuất :  PACE – MỸ
Xuất sứ   :  MỸ
Kích thước:  127mm (5") H x 381mm (15") W x 457.2mm (18") D
Cân nặng:  13.15kgs (29lbs)
Nguồn cung cấp:  230 VAC, (Export), 7 Amps (1600W)
Khoảng nhiệt độ:  38°C - 232°C (100°F - 450°F)
Điều khiển:  LED hiển thị số & bàn phím
Pre-Heaters4 Ceramic Infra Red (IR) Heaters Each heater is 400 Watts for a total output of 1600 Watts.
Kích thước board:  305mm x 406mm (12" x 16")
Chuẩn yêu cầu:  không
Theo chuẩn RoHS:   có
Chi tiết

The most powerful 4-Zone Pre-heater available.



The ST 1600 from PACE is the most powerful and fl exible pre-heating system available on the market today. The system features four 400 watt IR heaters for a total power output of 1600 Watts. Each of the four heaters can be turned on or off independently and can be set to it’s own unique temperature; giving the user complete control and flexibility. The ST 1600 fi ts easily onto any electronics’ workbench. The system comes standard with an integrated PCB holder with a 305 mm x 406 mm (12" x 16") capacity.

The ST 1600 is fully programmable and possesses the unique programming features that you expect from PACE.  These features include: password protection, auto-off timer, °C/°F, and “Scan Mode” where the system will display the “set” and “actual” temperatures of the individual heaters. Additionally, the system can be put into a closed loop control mode where the heater activity is controlled by a thermocouple placed on the PCB being worked on.

High mass, Lead Free PCBs are no longer a problem when using the ST 1600! Using auxiliary heating or “Pre-Heating” allows the successful completion of soldering or desoldering operations without having to use dangerous, damaging high temperatures. The ST 1600 will improve productivity, allow for a safe process, and reduce operator frustration when working with challenging PCBs.

The ST 1600 features a steel housing and frame for maximum durability and has four adjustable feet to elevate, lower, or angle the system.

A Worldwide Commitment

With offices worldwide, PACE, Inc. is a recognized world leader in the development of solutions for the assembly and repair of highly advanced electronics. Our expertise extends back to the dawn of the modern electronics industry. In 1958, PACE introduced training programs for the repair of the printed wire assemblies, and soon after, revolutionized the industry by creating the first self-contained vacuum desoldering system.

Today, PACE continues to provide innovative solutions, products and training for the rework and repair of printed circuit assemblies. Our unique capabilities and evolving vision have provided universal solutions to thru-hole and surface mount assembly and rework problems for the most advanced electronics.

Additionally, PACE manufactures Fume Extraction systems to reduce exposure to harmful particulates and gases created from hand soldering operations. PACE Fume Extraction systems effectively remove these contaminants from the worker's breathing zone thereby reducing or eliminating health risks.

Our strong commitment and history of achievement has resulted in an unparalleled range of Assembly, Repair and Fume Extraction solutions to meet your needs whether working to IS0-9000, industrial, military or your own internal specifications. Whatever the challenge, PACE stands ready to set a new standard for you.
