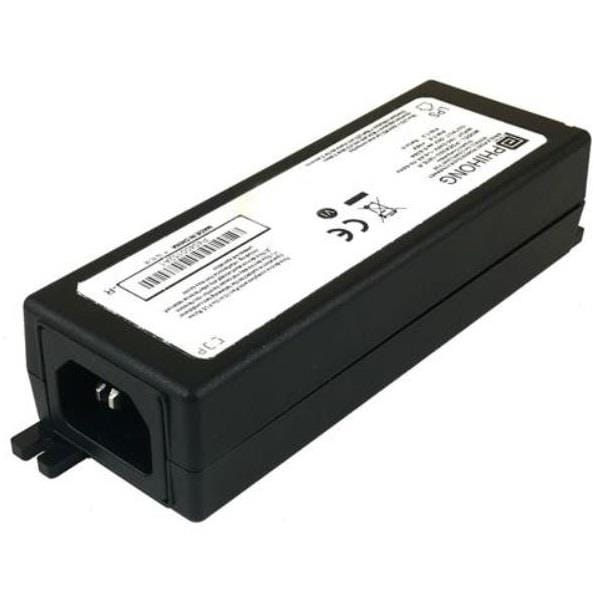

Bộ cấp nguồn PoE 30W 56Vdc 10-536mA 10/100/1000 Phihong POEA30U-1ATE-R

Width: 45.5 mm

Height: 30 mm

Length: 140.1 mm

Features: Non-Vented Case

Approvals: cUL/UL, CB, CE

Data Rate: 10 Mb/s, 100 Mb/s, 1 Gb/s

Compliance: 802.3at

Efficiency: 85 %

Unit Weight: 200 g

Output Power: 30 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Desktop

Load Regulation: Regulated

Number of Ports: 1 Port

Number of Outputs: 1 Output

DC Output Connector: RJ45 Connector

Output Current-Channel 1: 536 mA

Output Voltage-Channel 1: 56 V

AC Plug included/required: Required

Operating Temperature Range: - 10 C to + 40 C

Maximum Operating Temperature: + 40 C

Minimum Operating Temperature: - 10 C
