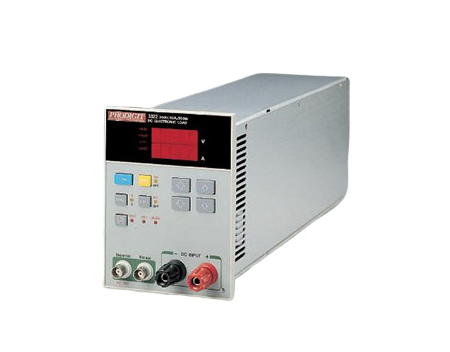

Tải điện tử DC Prodigit 3323 (150W, 10A, 400V)

Công suất Max: 150W

Dòng điện Max: 10A

Điện áp hoạt động: 400V

Hiển thị : V, A, W

Lựa chọn mua thêm mainframe (cần thiết 1 trong các loại sau)

- 3302F: Mainframe for Single load module, 150 Store/Recall Memory Without RS232 & GPIB

- 3302C: Mainframe for single load module, with RS232C, 150 Store/Recall Memory W/O GPIB

- 3302C(GPIB) : Mainframe for single load module, with RS232C, 150 Store/Recall Memory with GPIB

- 3301A: Quad module mainframe, 5 Store/Recall Memory W/O GPIB

- 3301A (GPIB) : Quad module mainframe, 5 Store/Recall Memory with GPIB

Mainframe: 3302C, 3302F

Feature

- CC Static, Short Mode

- Dual 4 1/2 V/A Meter on each module

- 3 Ranges Current Slew Rate control capability

- Can be configured in 3302 single or 3301A 4ch Mainframe with 5 states Memory Store / Recall on each Module

- Protections against V, W, and T

Description

- 3320 series module are used with the 3302 single and 3301A 4ch Mainframes.

- Each 3320 series module has its own control and display panel with constant current operating mode.

- 5 states Store/Recall memory on 3302 and 3301A mainframe which provides load set-up more efficiently.

- Optional Vsense Control Switches and disable SHORT keys are available.

- 3320 Series suitable for Voltage source testing, SMPS Load Regulation, Power Supply Life testing, Short circuit Testing, Battery discharge, Production Line, and QC, Burn-in.

---
