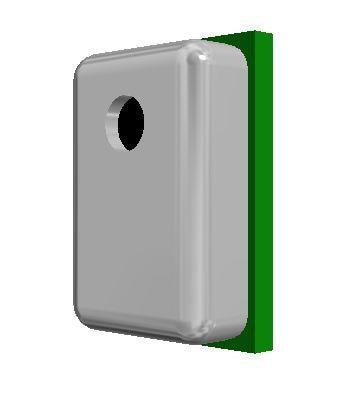

MICROPHONE MEMS TƯƠNG TỰ OMNI -42 DB 2VDC 150uA PUI Audio AMM-2742-T-R

Shape: Rectangular

Width: 1.85 mm

Length: 2.75 mm

Impedance: 300 Ohms

Port Type: Top

Dimensions: 2.75 mm x 1.85 mm x 0.9 mm

Technology: Si

Output Type: Analog

Sensitivity: - 42 dB

Mounting Style: SMD/SMT

Frequency Range: 20 Hz to 20 kHz

Termination Style: Solder

Supply Voltage - Max: 3.6 VDC

Supply Voltage - Min: 1.5 VDC

Directional Properties: Omnidirectional

Operating Supply Current: 80 uA, 150 uA

Operating Supply Voltage: 2 VDC

SNR - Signal to Noise Ratio: 59 dB

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
