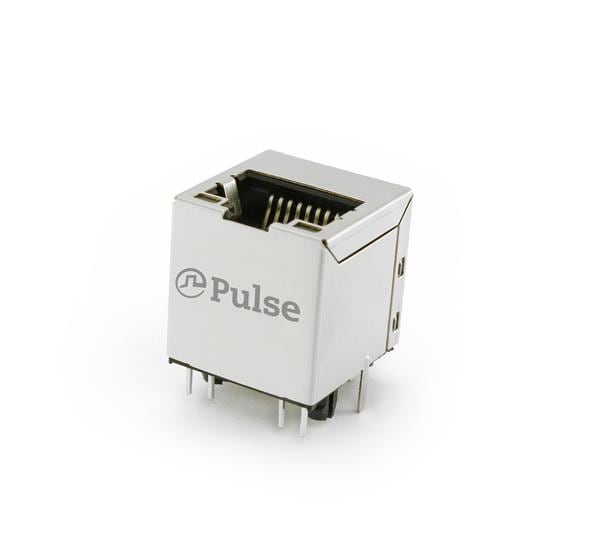

Modular 100BaseTX 1x1 Ethernet dọc Pulse Electronics JXD2-0011NL

Color: Black

Gender: Jack (Female)

Shielding: Shielded

USOC Codes: RJ45

Application: 10/100 Base-TX

Configuration: 1x1

Tab Direction: Top Entry

Mounting Angle: Vertical

Mounting Style: Through Hole

Contact Plating: Gold

Number of Ports: 1 Port

Contact Material: Copper Alloy

Termination Style: Solder

Number of Contacts: 8 Contact

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Performance Category: Cat 5

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
