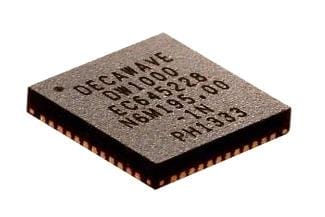

IC Thu Phát UWB Đa Băng Tần DW1000 Qorvo DW1000-I-TR13

Dimensions: 6 mm x 6 mm

Sensitivity: - 97 dBm, - 98 dBm, - 107 dBm

Output Power: - 9.3 dBm

Interface Type: SPI

Mounting Style: SMD/SMT

Frequency Range: 3.244 GHz to 6.999 GHz

Maximum Data Rate: 6.8 Mbps

Moisture Sensitive: Yes

Number of Receivers: 1 Receiver

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.8 V

Number of Transmitters: 1 Transmitter

Operating Supply Voltage: 3.3 V

Supply Current Receiving: 30 mA, 210 mA

Supply Current Transmitting: 70 mA, 90 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
