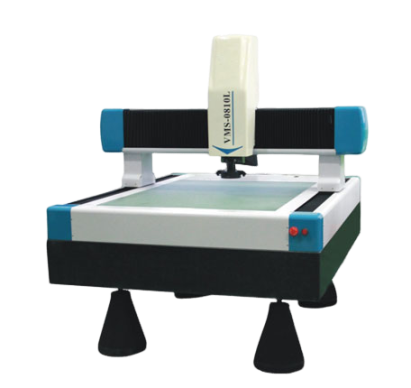

Máy đo CNC Rational VMS-0810L (X,Y: 800×1000)

Bàn làm việc:

Kích thước bàn kính (mm): 1170×900

Hành trình (mm): 800×1000

Độ phân giải tỷ lệ tuyến tính: 0.5μm

Chỉ thị lỗi: E1XY=(3.5＋L/200)μm

Hệ thống video:

Máy ảnh CCD màu 1/2”

Ống kính thu phóng 0.7~4.5×. Tổng độ phóng đại: 20～128×（màn hình 19.5 inch. Độ phân giải: 1440*900)

Trường nhìn: 11.1mm～1.7mm

Nguồn điện: AC 100-240V 50/60Hz. Công suất: 1800W (không bao gồm PC)

Kích thước (L×W×H): 1700×1600×1700

Hành trình trục Z: 200

Tốc đô tối đa trục X, Y: 400 mm/giây

Trọng lượng (kg): 1900

Features：

1. The seft-developed Measuring software has meet various requirements of customers.

2. With features like auto focusing, auto edge finding, powerful programming, and auto measuring, etc.

3. Adopts subpixel subdivision technique to improve resolving power of boundary.

4. Equipped with joystick, which is also able to be programmed by software.

5. SPC data processing system and large quantities of jig measurement.

6. X, Y, Z-axis all adopt servo control system - Quick positioning with high precision, and stable operation.

7. Adopts self-developed sophisticated embedded module control system installed within the instrument, which ensures a more stable operation.

8. Programmed constant current drive for surface cold light source in the 5 rings and 8 zones, which is suitable for complicated workpiece.

9. Detects the measured workpiece’s specific location by laser indicator, which is convenient to position and operate.

10. Optional configuration: auto zoom lens, coaxial light source lens, laser shifter, or Renishaw probe.

11. Adopts linear guide, which the instrument doesn’t need to supply with air, and can be installed and debugged before delivery.

12. Stationary granite working table as well as 00-level granite pedestal, which are reliable, heavy loading, high precision.

13. High speed and high efficiency.
