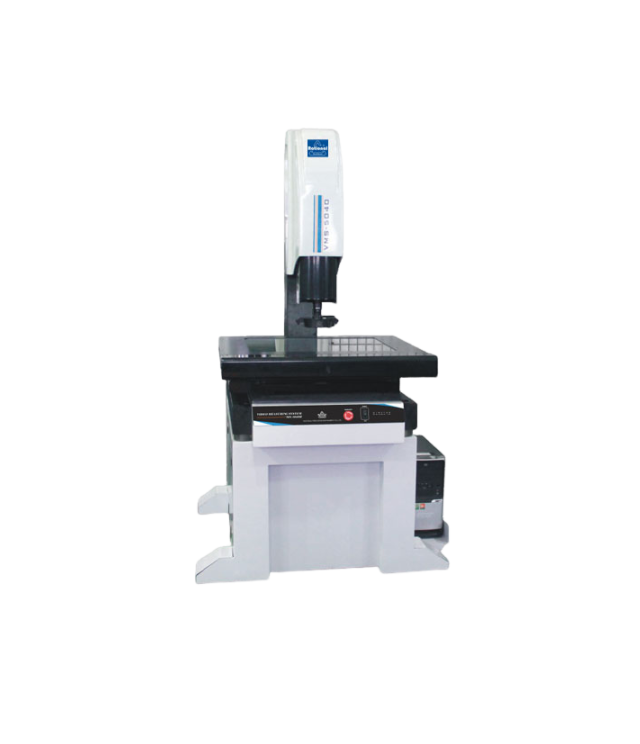

Máy đo CNC Rational VMS-5040H (X,Y: 470×370)

Bàn làm việc:

Kích thước bàn kim loại (mm): 786×636

Kích thước bàn kính (mm): 570×470

Hành trình (mm): 470×370

Độ phân giải tỷ lệ tuyến tính: 0.5μm

Lỗi chỉ thị: E1XY=(2.5＋L/100)μm

Hệ thống video

Camera CCD màu 1/2”

Ống kính thu phóng 0.7~4.5×. Tổng độ phóng đại: 20～128×（màn hình 19.5 inch. Độ phân giải: 1440*900)

Trường nhìn: 11.1mm～1.7mm

Nguồn điện: AC 100-240V 50/60Hz. Công suất: 1800W (không bao gồm PC)

Kích thước (L×W×H): 1200×1270×1870

Hành trình trục Z（mm): 200 (Có thể tùy chỉnh thành 400mm)

Trọng lượng (kg): 850

Features：

1. Ergonomic design makes it convenient to operate.

2. Auto focusing, auto edge finding, powerful programming, and auto measuring.

3. Auto zoom feature (optional configuration), which is able to effectively measure the object with multi-magnification while doesn’t need to calibrate pixels.

4. The seft-developed Measuring software has meet various requirements of customers.

5. Adopts subpixel subdivision technique to improve resolving power of boundary.

6. Equipped with joystick, which is also able to be programmed by software.

7. SPC data processing system and large quantities of jig measurement.

8. X, Y, Z-axis all adopt servo control system - Quick positioning with high precision, and stable operation.

9. Adopts self-developed sophisticated embedded module control system installed within the instrument, which ensures a more stable operation.

10. Programmed constant current drive for surface cold light source in the 5 rings and 8 zones, which is suitable for complicated workpiece.

11. Detects the measured workpiece’s specific location by laser indicator, which is quick to position, and convenient to operate.
