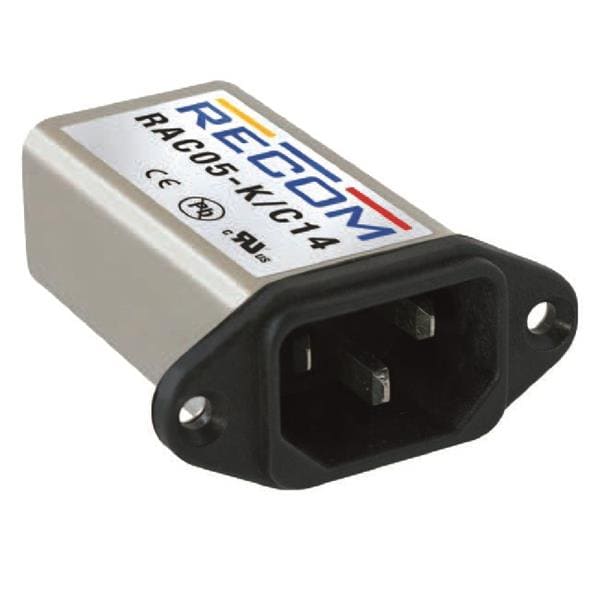

Nguồn chuyển mạch 5W 85-264Vin 3.3Vout 1.51A RECOM Power RAC05-3.3SK/C14

Width: 48 mm (1.89 in)

Height: 23 mm (0.906 in)

Length: 67 mm (2.638 in)

Industry: Industrial

Approvals: UL/IEC/EN62368-1, IEC/EN60950-1

Compliance: ANSI; CAN/CSA; CE; EAC; ERP; FCC; IEC; RoHS; UL

Efficiency: 76 %

Unit Weight: 56 g

Output Power: 5 W

Input Voltage: 85 VDC to 264 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 85 VAC

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 1.51 A

Output Voltage-Channel 1: 3.3 VDC

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 25 C
