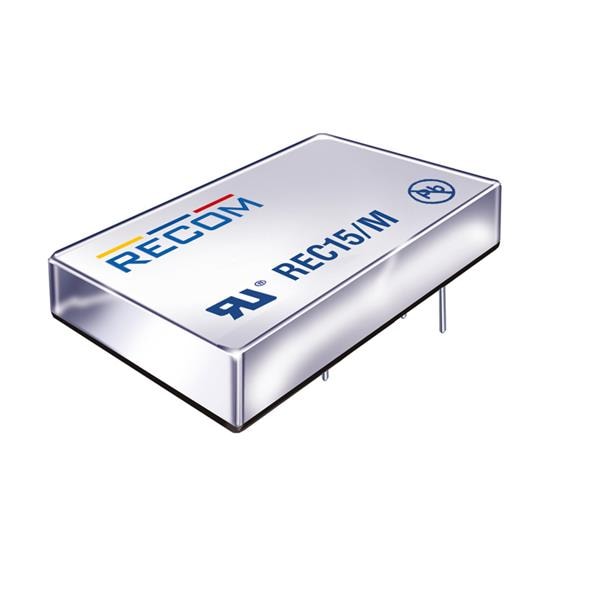

Bộ cách ly 15W 9-18Vin 5.1Vout 3A RECOM Power REC15-125.1S/H3/M/X2

Width: 25.4 mm (1 in)

Height: 10.2 mm (0.402 in)

Length: 50.8 mm (2 in)

Industry: Industrial

Compliance: CAN/CSA; IEC; REACH; RoHS; UL

Efficiency: 87%

Unit Weight: 27 g

Output Power: 15 W

Input Voltage: 9 V to 18 V

Mounting Style: Through Hole

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Input Voltage - Max: 18 V

Input Voltage - Min: 9 V

Input Voltage, Nominal: 12 V

Standard Packaging Size: 2 x 1

Output Current-Channel 1: 3 A

Output Voltage-Channel 1: 5.1 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
