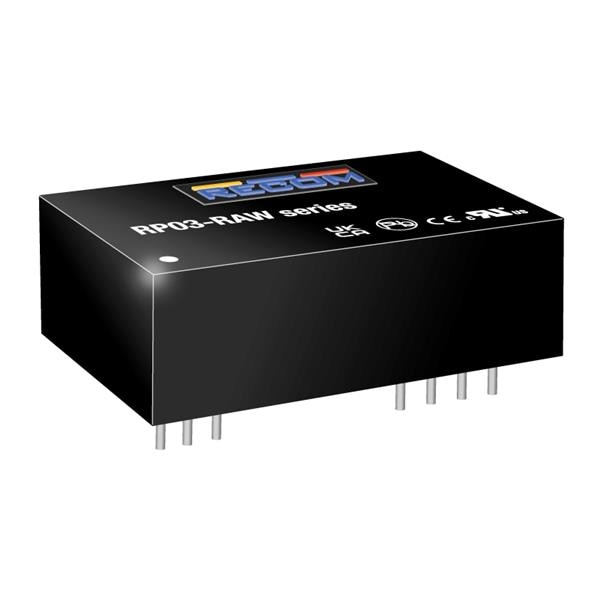

Bộ cách ly 3W 36-160Vin +/-12Vout +/-125mA RECOM Power RP03-11012DRAW

Width: 20.3 mm (0.799 in)

Height: 10.6 mm (0.417 in)

Length: 31.8 mm (1.252 in)

Industry: Industrial

Dimensions: 31.8 mm x 20.3 mm x 10.6 mm

Output Power: 3 W

Input Voltage: +/- 36 VDC to +/- 160 VDC

Mounting Style: Through Hole

Isolation Voltage: 3 kV

Number of Outputs: 2 Output

Input Voltage - Max: 160 V

Input Voltage - Min: 36 V

Input Voltage, Nominal: 110 V

Output Current-Channel 1: 125 mA

Output Current-Channel 2: 125 mA

Output Voltage-Channel 1: 12 V

Output Voltage-Channel 2: - 12 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
