Đặc tính đầu vào
Dải đo điện áp: 0~200V~800V, tự động chuyển thang.
Dải đo dòng điện:
Kẹp dòng (3 loại): 5A / 25A (tiêu chuẩn)
100A / 500A (optiona;)
400A / 2000A (optional)
Dải đo góc pha: 0 ~ 359.99°.
Dải đo tần số: 45 ~ 55Hz.
Kênh đo điện áp: 3 kênh (UA, UB, UC).
Kênh đo dòng điện: 3 kênh (IA, IB, IC).
Số bậc phân tích sóng hài tối đa: 63 bậc.
Thời gian lưu trữ liên tục tối đa (chu kỳ 1 phút): 18 tháng.
Độ chính xác
Phần đo thông số điện:
Điện áp: ±0.2%
Tần số: ±0.01Hz
Dòng điện, công suất: ±0.5%
Pha: ±0.2°
Phần chất lượng điện năng:
Sai số điện áp cơ bản: ≤0.5% F.S.
Sai số dòng điện cơ bản: ≤1% F.S.
Sai số góc pha giữa điện áp và dòng điện cơ bản: ≤0.2°
Sai số phần trăm điện áp sóng hài: ≤0.1%
Sai số phần trăm dòng điện sóng hài: ≤0.2%
Sai số mất cân bằng điện áp 3 pha: ≤0.2%
Sai số độ lệch điện áp: ≤0.2%
Sai số dao động điện áp: ≤0.2%
Nhiệt độ làm việc: -10℃ ~ +40℃
Nguồn sạc: AC 220V, tần số 45Hz–55Hz
Công suất tiêu thụ của máy chính: ≤3VA
Thời gian hoạt động tối đa của pin: ≤10 giờ
Cách điện:
(1) Điện trở cách điện giữa đầu vào điện áp, dòng điện và vỏ ≤100MΩ.
(2) Chịu được điện áp xoay chiều 1.5KV (giá trị hiệu dụng) trong 1 phút giữa đầu vào nguồn và vỏ thiết bị.
Kích thước: 258mm × 158mm × 58mm
Khối lượng: 1.8Kg

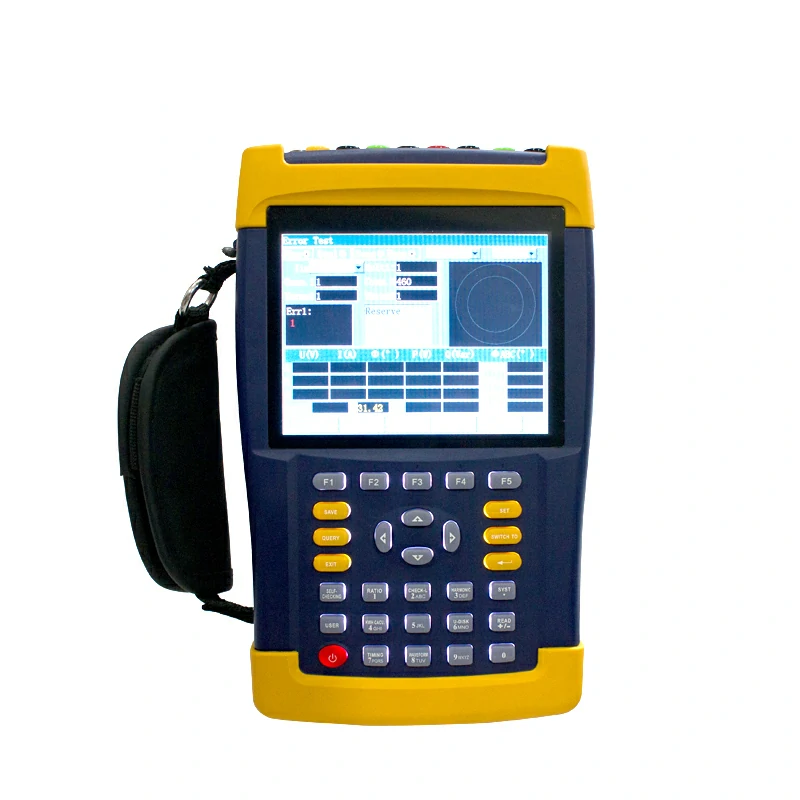

Functions and Features for the Electric Energy Quality Analyzer:
1. The instrument is designed as a high-precision test equipment to detect grid waveform distortion occurrence, the harmonic content , voltage fluctuations and flicker and phase imbalance of power quality problems; It also includes electrical parameters testing, vector analysis functions.
2. It can accurately measure a variety of electrical parameters, such as voltage, current, active power, reactive power, phase angle, power factor, frequency, etc.
3. It can display the vector diagram of the measured voltage and current , by analyzing which users can judge if the metering device wiring is correct or not.
4. Current is measured by using the clamp transformers. You can easily and securely do the measurement, because of the use of clamp current transformers, without connecting the current loop. Depending on the user's measurement range, you can be equipped with different range of clamps.
5. Measurement and analysis of the AC power quality from the utility grid to client can be done easily, its measurement and analysis: frequency deviation, voltage deviation, voltage fluctuations, flicker, three-phase voltage unbalance factor and harmonic.
6. It can display single-phase voltage, current waveform and can display three-phase voltage and current waveform at the same time.
7. All testing interface is functioned with a screen lock feature to facilitate reading and analysis of user data.
8. Load fluctuations monitoring: It can measure and analysis fluctuations on the utility grid power quality caused by a variety of electrical equipment at different operating conditions. Record and store trend of electrical parameter, such as voltage, current, active power, reactive power, apparent power, frequency, and phase at a regular time.
9. It can do electrical equipment adjustment and dynamic monitoring during operation, and help users to solve the power adjustment and commission process problems.
10. It can measure and analysis the dynamic parameters of reactive power compensation and filtering devices in the power system, and make quantitative evaluation of its features and technical specifications.
11. Users can set different storage interval, and it will successively store data according to the set time interval;
12. High-capacity data storage is equipped inside. It can store 18 consecutive months or more according to one minute interval, which meets the needs of long-term monitoring testing points.
13. The instrument includes a USB connector, which can be easily used to copy the data directly to the backstage management computer.
14. It coordinates with powerful data management software, and can directly upload real-time sampling data to backstage management compute, which can do a more comprehensive and rapid treatment in the background.
15. It has a calendar, clock function, which can display date and time in real-time. You can detect at the scene while saving test data and results, and upload to a computer via serial connector, then realize computerized data management through the backstage management software (optional), with powerful reporting capabilities.
16. Large-screen imported color LCD is used as a display, and Chinese user interface is equipped with Chinese character prompt, multi-parameter display LCD interface, friendly interactive interface.
17. LCD will automatically enter power-saving mode when there are 3 minutes without operation in order to maximize the extending battery life.
18. It uses conductive silicone keypad, which feels good, long life, reasonable design, and easy to operate.
19. High-capacity, high-performance lithium-ion rechargeable battery is equipped inside, which can continuously work for more than 10 hours if the battery is fully charged.
20. It has a small size, light weight, easy to carry. It can be used both as site testing measurement and as the standard measurement equipment in laboratory.
