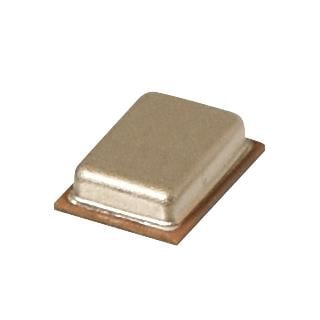

Microphone MEMS Microphone MEMs 3.5x2.65mm 2Vdc SMT Same Sky (formerly CUI Devices) CMM-3526AB-38308-TR

Depth: 0.98 mm

Shape: Rectangular

Width: 2.65 mm

Length: 3.5 mm

Impedance: 300 Ohms

Port Type: Bottom

Tolerance: 3 dB

Dimensions: 3.5 mm x 2.65 mm x 0.98 mm

Output Type: Analog

Sensitivity: - 38 dB

Unit Weight: 23 mg

Mounting Style: SMD/SMT

Frequency Range: 100 Hz to 10 kHz

Termination Style: SMD/SMT

Sound Pressure Level: 130 dB

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.6 V

Directional Properties: Omnidirectional

Operating Supply Current: 80 uA

Operating Supply Voltage: 2 V

SNR - Signal to Noise Ratio: 65 dBA

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
