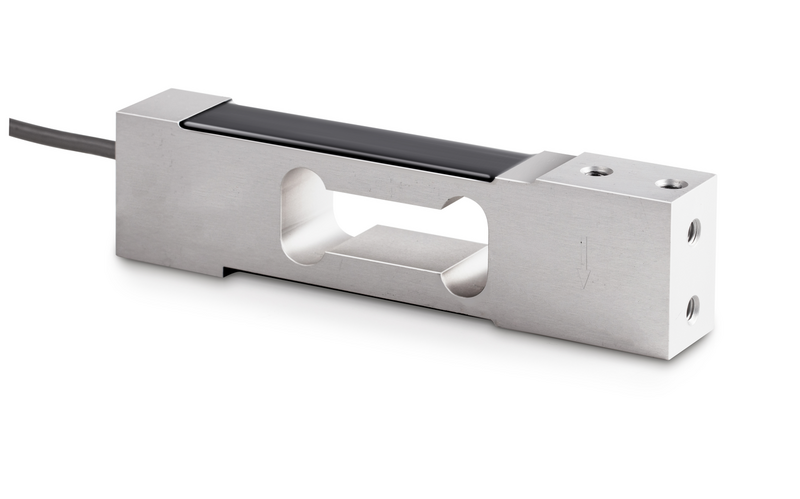

Cảm biến đo lực SAUTER CP 30-3P3

Design: Singlepoint load cell

Material: aluminium

Cable length: 3 m

GTIN/EAN number: 4045761254039

Directions of force: compression

Load cell - Y-value: 12000

Load cell OIML class: C3

Load cell connection: 6-wire

Measuring applications: mass

Weighing capacity [Max]: 30 kg

Load cell - Combined error: 0,023%

Mounting - force application: 2 × threaded hole M6

Mounting - force dissipation: 2 × threaded hole M6

IP protection - complete device: IP65

Load cell - Resolution (verifiable): 3000 e

Load cell - characteristic value - nominal: 2 mV/V
