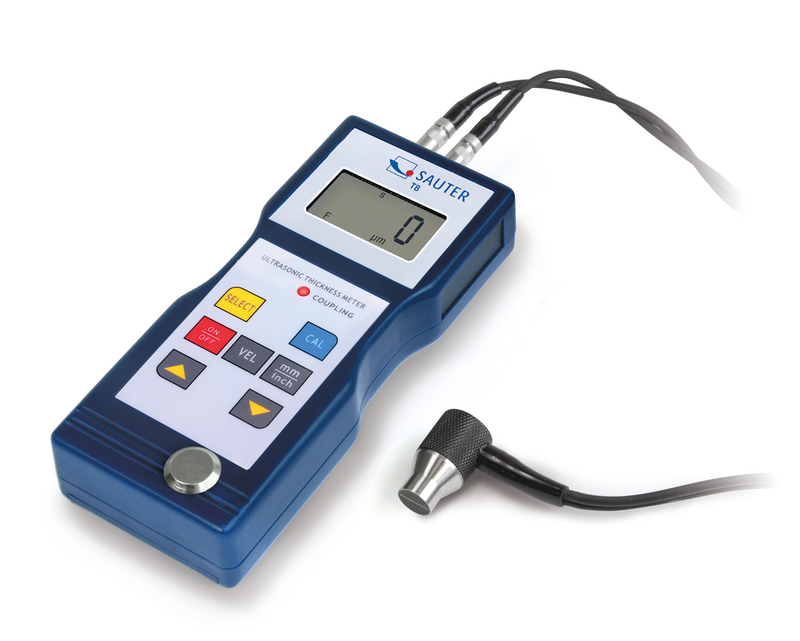

Máy đo độ dày siêu âm SAUTER TB 200-0.1US-RED (1,5 mm – 200 mm)

Units: mm, inch

Battery: 4×1.5 V AA

Cable length: 0,9 m

Speed of sound: 500 m/s – 9999 m/s

Material housing: plastic

Tolerance (% of [Max]): 0,5%

Measuring range pulse-echo: 1,5 mm – 200 mm

Speed of sound [Max] (m/s): 9999 m/s

Speed of sound [Min] (m/s): 500 m/s

Measuring head measuring frequency: 5 MHz

Dimensions completely mounted (W×D×H): 161×68×32 mm

Readability material thickness [d] (mm): 0,1 mm

Material thickness pulse-echo [Max] (mm): 200 mm

Material thickness pulse-echo [Min] (mm): 1,5 mm

Datasheet
