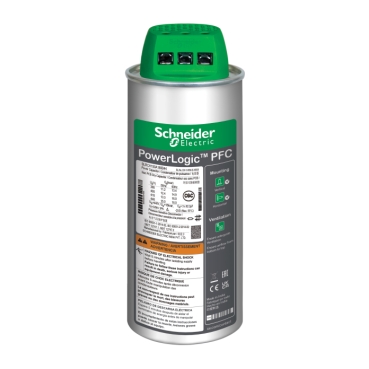

Tụ bù SCHNEIDER BLRCH170A204B48 (17/20.4 kvar - 480 V - 50/60Hz)

Range of product: PowerLogic

Product or component type:Heavy duty capacitor

Network frequency:50/60 Hz

Series name:HDuty

Network harmonic content:<= 20 %

Electrical parameters:17 kvar 480 V 50 Hz

20.4 kvar 480 V 60 Hz

Maximum permissible voltage:1.1 x Un (8 hours over 24 hours)

Continuous overcurrent capacity:1.8 x In

Rated voltage:480 V AC 50/60 Hz

Dielectric losses:< 0.2 W/kvar

Power losses:< 0.5 W/kVAr

Capacitance tolerance:- 5 % to 10 %

Voltage test:2.15 x Un AC between terminals for 10 s

<= 660 V - 3 kV AC between terminal and container for 10 s

>= 660 V - 6 kV AC between terminal and container for 10 s

Inrush current:250 x In

Maximum switching operation per year:7000

service life in hours:130000 h

Dielectric material:Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut)

Impregnation material:Non-PCB dry PUR resin Biodegradable

Type of installation:Indoor installation

Connections - terminals:ClampTite terminal

Mounting mode:Upright/horizontal

Diameter:90 mm

Height:242 mm

Net weight:1.6 kg
