Thiết bị tìm lỗi dòng dò SEW 188 FFF
Hãng sản xuất: SEW Model: 188 FFF Xuất xứ: Taiwan (Đài Loan) - Liên hệ
Tham khảo dịch vụ Hiệu chuẩn-Kiểm định và Sửa chữa
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222) 730.39.68
TP. Hải Phòng: (0225) 730.03.89
TP. HCM: (028) 38.119.636
Đồng Nai: 0932.160.940
Bộ thu
Tần số : 10kHz
Thanh led: 9
Chỉ thị pin: 1
Nút ấn On: 1
Nút ấn Off: 1
còi: 1
nguồn: 9V (6F22 006P) x 1 battery
Kích thước: 200(L) x 50(W) x 40(H) mm
Trọng lượng: 112g
Bộ phát
Điện áp làm việc: 110 to 240 Vac (50/60Hz)
Tần số: 10 kHz
Kích thước: 60 (L) x 50(W) x 30(H) mm
Trọng lượng: 134g
Kết nối: kiểu chân cắm
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
FEATURES | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

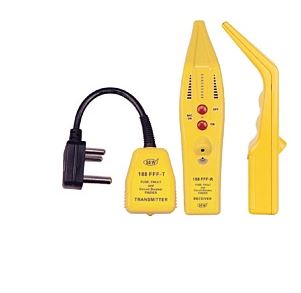

● The 188FFF is a Fuse and Fault Finder which comprises of two
parts : The Receiver and the Transmitter. ● The Transmitter, draws a current from the mains supply circuit to which it is connected to. The Signal ● Current from the Tx is at about 10kHz. The Transmitter is powered by the mains and requires no batteries. ● The 10kHz signal current generated by the Transmitter is then searched(sniffed) by the Receiver to detect the Fuse, Circuit Breaker or the faulty circuit. ● The Receiver is a tuned circuit which has it is center frequency tuned to about 10kHz. The sensor is located in the tip of the Receiver. ● The amplitude of the received signal is shown on a bar-graph type Leds. ● The more Leds ON, the stronger the signal. ● The Receiver uses one 9V battery. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SPECIFICATIONS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
