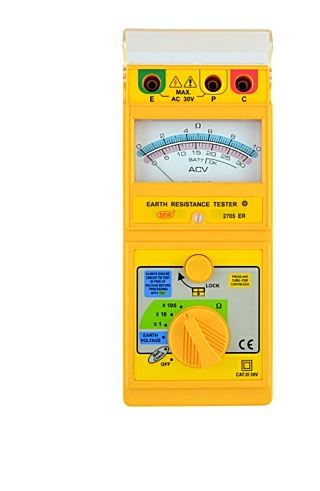

Máy đo điện trở đất 3 dây SEW 2705ER

Dải đo của điện trở đất
 0-10Ω / 0-100Ω / 0-1000Ω
 Điện áp đất  0-30 Vac (40-500Hz)
 Độ chính xác Điện trở đất  ±3%
 Điện áp đất  ±2.5%
 Cách đo: Biến đổi dòng điện khoảng 2mA liên tục lên tần số 820 Hz
 Chỉ thị mạch hở LED sẽ không sáng
 Kích thước 205(L) × 90(W) × 55(D)mm
 Cân nặng
 (Bao gồm pin) khoảng. 514g
Pin: 1.5V (AA) × 6
Tiêu chuẩn an toàn EN 61010-1 CAT III 30V,
EN 61326-1
Phụ kiện bao gồm
Hướng dẫn
Dây test đỏ dài 15m, vàng 10m, xanh 5m
Cọc cắm đất,Pin
Dây đo đơn giản, Hộp cứng




Chi tiết





 FEATURES
● High quality Taut Band movement.
● Capable of measuring earth resistance and earth voltage.
● 2mA measuring current permits the testing of earth
   resistance without tripping earth leakage current
   breakers in the circuit under test.
● Test leads are supplied as standard accessories
    for simplified two-wire measuring system.
● Battery operated.
● Battery check function.
● Calibration performed with supplied test leads.

  SPECIFICATIONS


 Measuring ranges  Earth resistance
 0-10Ω / 0-100Ω / 0-1000Ω
 Earth voltage
 0-30 Vac (40-500Hz)
 Accuracy  Earth resistance  ±3% of full scale
 Earth voltage  ±2.5% of full scale
 Measuring system  Earth resistance by constant
 current inverter 820 Hz, 2mA approx
 Open circuit
 indication
 LED will be unlit
 Dimensions  205(L) × 90(W) × 55(D)mm
 Weight
 (battery included)
 Approx. 514g
 Power source  1.5V (AA) × 6
 Safety standards  EN 61010-1 CAT III 30V
 EN 61326-1
