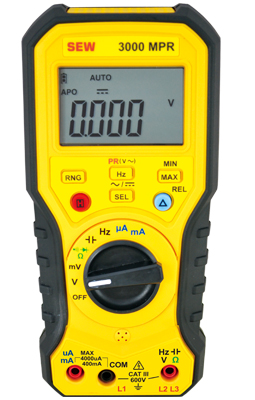

Đồng hồ vạn năng và chỉ thi pha SEW 3000 MPR
-
Hãng sản xuất: SEW Model: 3000 MPR Xuất xứ: Đài Loan Bảo hành: 12 tháng -
Liên hệ
-
Gọi để có giá tốt
Hanoi: (024) 35.381.269
Đà Nẵng: (0236) 3 74 77 11
TP.HCM: (028) 38.119.636
- Cam kết chất lượng
- Bảo hành chính hãng
- Giao hàng tận nơi
- Đơn giản hóa giao dịch
| DC Voltage | |||
Ranges | Resolution | Accuracy | |
400mV | 0.1mV | ±(0.5%rdg+3dgt) | |
4V | 1mV | ||
40V | 10mV | ||
400V | 100mV | ||
1000V | 1V | ||
| ․Input impedance : 10MΩ | |||
| AC Voltage | |||
Ranges | Resolution | Accuracy | |
400mV | 0.1mV | ±(1.0%rdg+5dgt) | |
4V | 1mV | ||
40V | 10mV | ||
400V | 100mV | ||
750V | 1V | ||
| ․Input impedance : 10MΩ | |||
| DC mA / µA | |||
Ranges | Resolution | Accuracy | |
400µA | 0.1μA | ±(1.0%rdg+5dgt) | |
4000µA | 1μA | ||
40mA | 0.01mA | ||
400mA | 0.1mA | ||
| ․Overload Protection 0.5A/600V fast blow fuse for 400mA | |||
| AC mA / µA | |||
Ranges | Resolution | Accuracy | |
400µA | 0.1μA | ±(1.2%rdg+5dgt) | |
4000µA | 1μA | ||
40mA | 0.01mA | ||
400mA | 0.1mA | ||
| ․Overload Protection 0.5A/600V fast blow fuse for 400mA | |||
| Resistance | |||
Ranges | Resolution | Accuracy | |
40Ω | 0.01 Ω | ±(1.2%rdg+3dgt) | |
400Ω | 0.1 Ω | ||
4kΩ | 1Ω | ||
40kΩ | 10Ω | ||
400kΩ | 100Ω | ||
4MΩ | 1kΩ | ||
40MΩ | 10kΩ | ±(2.0%rdg+4dgt) | |
200MΩ | 100kΩ | ±(2.3%rdg+4dgt) | |
| Capacitance | |||
Ranges | Resolution | Accuracy | |
4 nF | 1 pF | ±(3.0%rdg+10dgt) | |
40 nF | 10 pF | ||
400 nF | 100 pF | ||
4 µF | 1 nF | ||
40 µF | 10 nF | ||
400 µF | 100 nF | ||
4 mF | 1 µF | ||
40 mF | 10 µF | ||
| Continuity | |||
Ranges | Audible threshold | ||
400Ω | Less than 30Ω | ||
| Diode | |||
Ranges | Accuracy | ||
2V | ±(1.5%rdg+3dgt) | ||
| Frequency | |||
Ranges | Resolution | Accuracy | |
400Hz | 0.1Hz | ±(0.5%rdg+2dgt) | |
4kHz | 1Hz | ||
40kHz | 10Hz | ||
400kHz | 100Hz | ||
4MHz | 1kHz | ||
40MHz | 10kHz | ||
| Phase Rotation | |||
| Input Voltage | 80~750VAC | ||
| Frequency range | 40~80Hz | ||
| Circuit structure | All electronic (not mechanical) | ||
| GENERAL | |||
| Dimensions | 188mm(L) x 90mm(W) x 54mm(D) | ||
| Weight (battery included) | Approx. 346g | ||
| Power source | 1.5V (AAA) battery x 2 | ||
| Safety standard | EN 61010-1 CAT III 600V EN 61326-1 | ||
