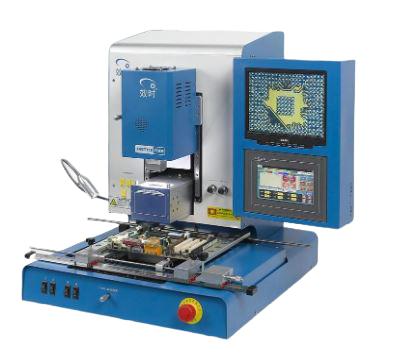

Trạm hàn BGA ShuttleStar PS400




Kích thước PCB : W20*D20~W350*D350mm
Độ dày PCB : 0.5~4mm
Điều chỉnh bàn làm việc: Trước/sau ±10mm , Trái/ phải ±10mm
Điều khiển nhiệt độ: Cặp nhiệt kế kiểu K, vòng kín
Bộ nhiệt trên ( khí nóng ): 1000W
Bộ nhiệt dưới ( khí nóng ): 1000W
Bộ nhiệt IR: 3000W
Nguồn cung: 1 pha AC 220V 4.5KW
Kích thước & trọng lượng BGA: 1*1~70*70mm, 300g
Kích thước máy:  L600*W600*H750mm
Trọng lượng: appox 60kg

Chi tiết

Features:
The streamline design is gorgeous and room-saving;
Hot air head and mounting head are designed 2 in 1, and have both the auto soldering and mounting function;
Upper/lower hot-air heating,bottom infrared,three independent heating areas, temperature
and time can be displayed digitally on the touch screen;
Powerful cross flow fans cool the bottom heating zone rapidly and constantly;
Color optical system with functions of spilt vision, zoom-in and micro-adjust, equipped with aberration detection device; with auto focus and software operation function, 27X optical focus;
Embedded industrial computer, PLC control, real-time temperature profile display, can display set profiles and 5 practically-tested profiles; able to analyze the 5 practical, and compare with the history saved profiles.
10” color LCD monitor, can be replaced to 12”, or 14” LCD display screen;
Built-in vacuum pump;60 rotating in φ angle mounting nozzle is micro-adjustable;
8 segments of temperature up (down) and 8 segments of constant temperature control, no limited profile curves can be stored in the industrial compute;
Suction nozzle can identify material and mounting height automatically, and can control the air pressure within a small range;
Equipped with different hot air nozzles, easy to replace and able to locate in any angle;
Big size splint, equipped with deformation-proof supporting device,suitable for the accurate rework of all kinds of PCB.
