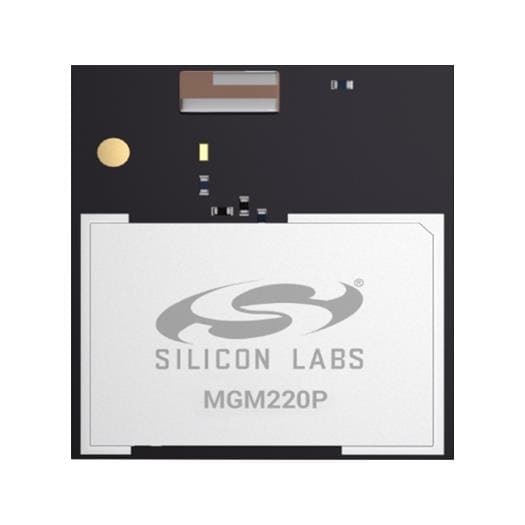

Bluetooth 5.4, Bluetooth Mesh, Zigbee MGM220P wireless gecko Silicon Labs MGM220PC22HNA2

Core: ARM Cortex M33

Protocol: BLE, Bluetooth 5.4

Data Rate: 2 Mb/s

Frequency: 2.4 GHz

Dimensions: 15 mm x 12.9 mm

Output Power: 8 dBm

Interface Type: Bluetooth, GPIO, I2C, UART

Moisture Sensitive: Yes

Receiver Sensitivity: - 102.3 dBm

Supply Voltage - Max: 3.8 V

Supply Voltage - Min: 1.8 V

Antenna Connector Type: Built-In

Supply Current Receiving: 4.4 mA

Supply Current Transmitting: 10.6 mA

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.2, Bluetooth Mesh

Protocol - ANT, Thread, Zigbee - 802.15.4: Zigbee
