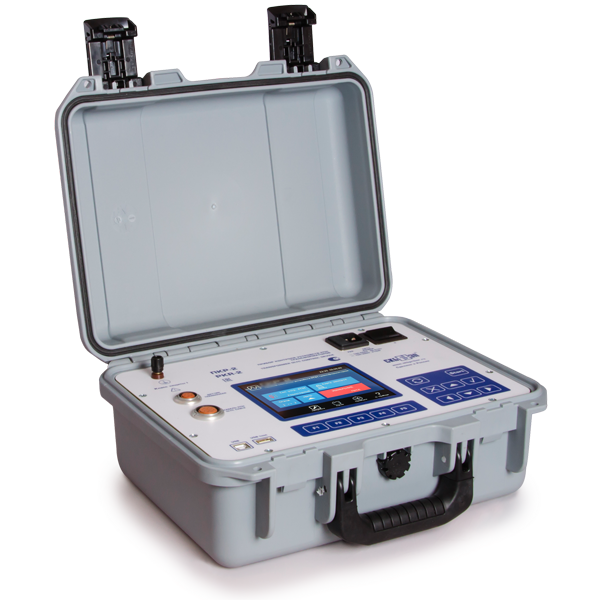

Máy phân tích bộ điều áp dưới tải OLTC của máy biến áp SKB PKR-2

  • Cam kết chất lượng
  • Bảo hành chính hãng
  • Giao hàng tận nơi
  • Đơn giản hóa giao dịch

Hãng sản xuất: SKB
Model: PKR-2
Xuất xứ: Nga
Phạm vi khoảng thời gian đo, sec: 0.01 ÷ 1200
Sai số, sec: ±(3+tx)×10-4
Độ phân giải thời gian, ms: ±0.1
Dải đo chuyển động góc, độ: 2 ÷ 360
Sai số góc, Độ: ±0.56
Dải đo dòng điện trực tiếp, А: 1 ÷ 4
Sai số đo dòng điện, %     ±2
Dải đo điện áp trực tiếp, V: 1 ÷ 20
Sai số đo điện áp, %     ±5
Dải đo điện trở, Ohm: 1 ÷ 20
Sai số, %     ±5
Tốc độ lấy mẫu đo trở kháng mỗi kênh, kHz: 10 ±0.1
Thời gian ghi max (radial diagram measurement) , phút ,:20
Công suất tiêu thụ ở chế độ chờ, W: 15
Công suất tiêu thụ ở chế độ đo lường, W: 210
Dải nhiệt độ hoạt động, ºС: -20 ÷ +50
Trọng lượng, kg: 6.1
Kích thước, mm:360×290×165
Giao diện: English
HDSD: English
Chu kỳ hiệu chuẩn: 3 năm
Cung cấp kèm theo:
- Máy chính, HDSD
- Đầu do dịch chuyển góc DP22
- Kẹp đất
- Tay quay
- Dây nối đất
- Dây nguồn
- Bộ dây đo lường
- Túi đựng



Cataloge

OLTS maintenance check

PKR-2 is intended for in-place maintenance check of all type (both resistor and reactor type) on-load tap changers (hereinafter – OLTCs) being a part of and not included in a power transformer.

Radial diagram measurement of the resistor and reactor type OLTCs

The instrument is completed with a special transducer. Its interface with shafts of different drives is provided with a set of axes and bushings, which are installed without any tools by simply putting on the shaft extension.

Based on the selector and contactor switching sequence circular diagram in case of forward and reversal travel, one may judge on the end play size and selector assembly quality.

All characteristics are taken simultaneously based on three phases for OLTCs located in the neutral conductor of "star-connected" windings, and single phase for OLTCs located in the line of "star-" or "delta-connected windings".


Resistor type OLTC contactor switchover oscillography

The switchover oscillography enables to detect the actuation delay, non-simultaneity of in phase actuation and bouncing during switchover.

All characteristics are taken simultaneously based on three phases for OLTCs located in the neutral conductor of "star-connected" windings, and single phase for OLTCs located in the line of "star-" or "delta-connected windings".


OLTC check in static mode

Check conducted during the drive shaft slow rotation using a handle with simultaneous display of contact closures/openings in degrees and voltage and current values.

Automatic self-adjustment to OLTC

No additional elements (for example, resistors) or knowledge of resistances of current-limiting resistors of the checked instrument are required to measure the OLTC parameters. All adjustments to a specific OLTC are performed automatically in the instrument.

Ergonomic calipers or alligator clip cable

The instrument is completed with special long calipers to be conveniently connected to some OLTCs (in this case, it is not necessary to drain oil from the contactor tank).

The instrument may be connected to the on-load tap changer with measuring cables provided with alligator clips without contact calipers with oil being partially drained from the contactor tank or removal of the on-load tap changer from the transformer tank.

Storage, transfer and analysis of measurement results

The instrument is equipped with a large color high-brightness and high-contrast display facilitating the graph processing.

The measurement results are stored in the non-volatile memory of the instrument, on the external flesh memory, and they may be transferred to the computer.

Therefore, the instrument may be controlled by the PC. It enables to measure diagrams being inside a car with the computer, which is important in winter.

High safety level during operation

The instrument meets the electromagnetic compatibility requirements to Class A equipment according to GOST R 51522.1-2011.

The instrument meets the safety requirements to electric control and measuring instruments and laboratory equipment according to GOST R52319-2005.

The instrument is represented in two modifications
  PKR PKR-2M
OLTC check mode demountable demountable and in-place *
Inbuilt battery supply none available
(operation time from 2 to 16 h)

* In-place check mode enables to conduct the in-place diagnostics of OLTCs with current-limiting resistors with the contactor tank cover in place. This mode is based on the DRM method (see above) and consists in measurement of current intensity through winding, in which the OLTC is switched on.



Specifications

Value

Time interval measuring range, sec

0.01 ÷ 1200

Maximum permissible intrinsic absolute error of time interval measurement, sec

±(3+tx)×10-4

Time interval measurement resolution ability, ms

±0.1

Angular movement measuring range, degrees

2 ÷ 360

Maximum permissible intrinsic absolute error of angular movement measurement, degrees

±0.56

Direct current intensity measuring range, А

1 ÷ 4

Maximum permissible intrinsic relative error of direct current intensity measurement, %

±2

Direct current electric voltage measuring range, V

1 ÷ 20

Maximum permissible intrinsic relative error of direct current electric voltage measurement, %

±5

Direct current electric voltage measurement range, Ohm

1 ÷ 20

Maximum permissible intrinsic relative error of direct current electric resistance, %

±5

Resistance measurement sampling rate per channel, kHz

10 ±0.1

Maximum recording time (radial diagram measurement), min

20

Number of computer communication channels, pcs.

2 (USB, USB host)

Maximum consumed power in start standby mode, W

15

Maximum consumed power in measurement mode, W

210

Operation temperature range, ºС

-20 ÷ +50

Maximum measuring unit weight, kg

6.1

Dimensions, mm

360×290×165

Interface language

English

User manuals language

English

Calibration period, year

3

Standard complete set
Photo Item, Index Application
PKR-2 measuring unit PKR-2 measuring unit SKB035.00.00.000 Instrument and accompanying documents: calibration certificate, operation manual, record book, measurement procedure, software (SW) for PC.
Measuring cable (3 pcs.) completed with a connector Measuring cable (3 pcs.) completed with a connector SKB035.24.00.000 For transformer connection to the OLTC contacts.
Angular movement transducer DP22 Angular movement transducer DP22 SKB035.26.00.000 The transducer enables to measure the angle and speed of the OLTC shaft rotation (complete with data sheet and calibration certificate). Angle measuring range – 0 - 360º (it is necessary to select the appropriate axis from the additional complete set).
Ground clamp Ground clamp SKB035.30.00.000 To fix the DP22 transducer on the OLTC drive.
Handle Handle SKB028.25.02.000 To fix the magnetic clamp. Handle for the OLTC shaft rotation. It is used together with axes from the additional complete set.
Mains cable Mains cable SKB018.09.00.000 For connecting the instrument to the power line. Temperature range -15 ÷ +45 ºС (length – 1.5 m).
Ground wire Ground wire SKB010.01.00.000 For instrument case grounding. Equipped with a ground clamp and screw end cap. Rated current – 50А (length – 1.8 m).
Axis No. 10 together with a bushing Axis No. 10 together with a bushing SKB035.25.00.000 Axis No. 10 is intended for the OLTC drives of MZ-4.1; M3.2; M3-4 types. It is used for the drive PDP-4U together with bushing SKB035.25.05.000.
VP2B-1V-2А cut-out (2 pcs.) VP2B-1V-2А cut-out (2 pcs.) For power source protection.
Cable and ancillary equipment carrying case Cable and ancillary equipment carrying case SKB126.06.00.000
Additional complete set (on order)
Photo Item, Index Application
Contact caliper set in a special case Contact caliper set in a special case Contact calipers (7 pcs.) for connection to the OLTC contacts without oil discharge. They are supplied in the convenient lockable carrying case.
USB 2.0 A-B cable USB 2.0 A-B cable For the instrument connection to PC (length – 1.8 m).
Axis No. 1 Axis No. 1 SKB035.25.01.000 For OLTC drives of BUL type.
Axis No. 2 Axis No. 2 SKB035.25.02.000 For OLTC drives of PDP; МА-1; МAK-1 types.
Axis No. 3 Axis No. 3 SKB035.25.03.000 For OLTC drives of PDP; МА-1; MAK-1 types.
Axis No. 4 Axis No. 4 SKB035.25.04.000 For OLTC drives of PDP; МА-1; MAK-1 types.
Axis No. 6 Axis No. 6 SKB035.25.06.000 For OLTC drives of PDP-4U type (when a manual drive is used).
Axis No. 9 Axis No. 9 SKB035.25.09.000 For OLTC drives of PDP-4U type (when an electric drive is used).
Axis No. 7 Axis No. 7 SKB035.25.07.000 For OLTC drives of MZ-4.1, MZ-4.4 types (when the electric drive is used).
Axis No. 8 Axis No. 8 SKB035.25.08.000 For OLTC drives of MZ-4.1, MZ-4.4 types (when the manual drive is used).
Axis No. 11 Axis No. 11 SKB035.25.11.000 For OLTC drives of SMA-7 (SMS-China), ED 100/200 S, ED 100/200 S types (MR-Germany) (when the manual drive is used).
Axis No. 12 Axis No. 12 SKB035.25.12.000 For OLTC drives of SMA-7 (SMS-China), ED 100/200 S, ED 100/200 S types (MR-Germany) (when the electric drive is used).
Axis No. 13 Axis No. 13 SKB035.25.13.000 For OLTC drives of VAKUTAP type manufactured by MR.
