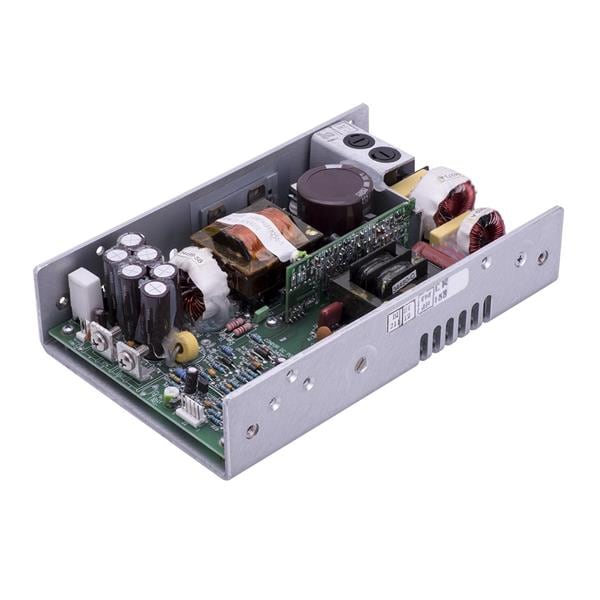

Nguồn chuyển mạch 250W 24V @ 7.5A SL Power GPFM250-24G

Width: 5 in

Height: 1.75 in

Length: 8 in

Industry: Medical

Approvals: EN60601-1

Compliance: EN60601-1

Unit Weight: 1.32 kg

Output Power: 250 W

Input Voltage: 85 VAC to 264 VAC

Cooling Method: Convection, Air-Cooled

Mounting Style: Chassis

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 85 VAC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 7.5 A

Output Voltage-Channel 1: 24 VDC

Operating Temperature Range: 0 C to + 50 C

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: 0 C
